Texas Instruments provides a recommended PCB layout in the TAS5414CTPHD evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
To optimize thermal performance, ensure good thermal conductivity between the device and the heat sink, use a heat sink with a high thermal conductivity, and provide adequate airflow around the device. Additionally, follow the recommended PCB layout and thermal management guidelines in the datasheet and EVM user's guide.
The maximum power dissipation of the TAS5414CTPHD depends on the operating conditions, such as supply voltage, output current, and ambient temperature. Refer to the datasheet for the power dissipation calculation formula and thermal resistance values to determine the maximum power dissipation for your specific application.
Use an overvoltage protection (OVP) circuit and an undervoltage lockout (UVLO) circuit to protect the device from voltage transients and faults. The OVP circuit can be implemented using a voltage supervisor IC, while the UVLO circuit can be implemented using a voltage detector IC or a simple resistor-divider network.
The recommended input capacitor value and type depend on the input voltage, output current, and operating frequency. A general guideline is to use a low-ESR ceramic capacitor with a value between 10uF to 22uF, and a voltage rating that exceeds the maximum input voltage. Refer to the datasheet and application notes for more specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5414CTPHD Overview

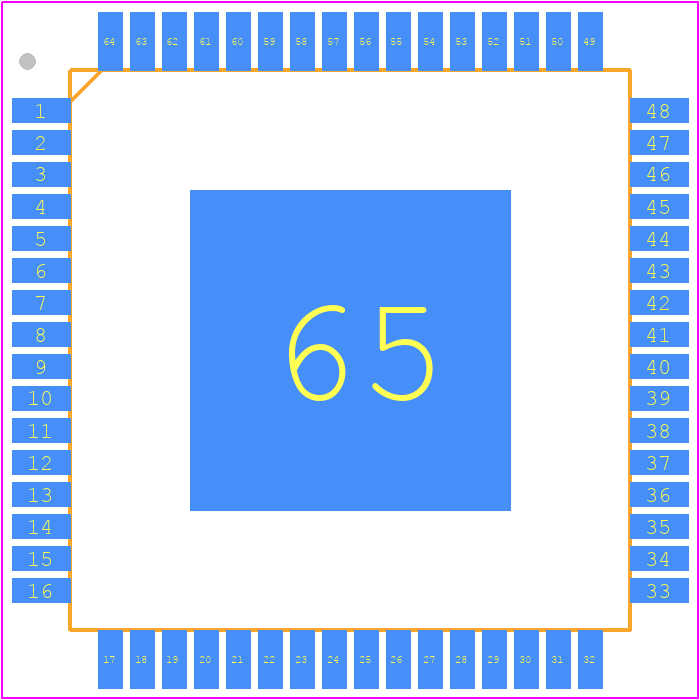

Use the download button to access the TAS5414CTPHD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS54,
or try a keyword search, such as Audio/Video Amplifiers
