Texas Instruments provides a recommended PCB layout in the TAS5613APHD evaluation module documentation, which includes guidelines for component placement, thermal management, and signal routing to ensure optimal performance and minimize electromagnetic interference (EMI).
The output filter design depends on the specific application requirements, such as output power, frequency, and load impedance. TI provides a filter design tool and application notes that can help engineers optimize the output filter design for their specific use case.
The maximum junction temperature (Tj) for the TAS5613APHD is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
Yes, the TAS5613APHD is a Class-D audio amplifier, and it's designed to operate in a Class-D configuration. However, the device can also be used in other amplifier topologies, such as Class-AB or Class-H, depending on the specific application requirements.
The TAS5613APHD has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, additional external protection circuits may be required depending on the specific application requirements and operating conditions.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TAS5613APHD Overview

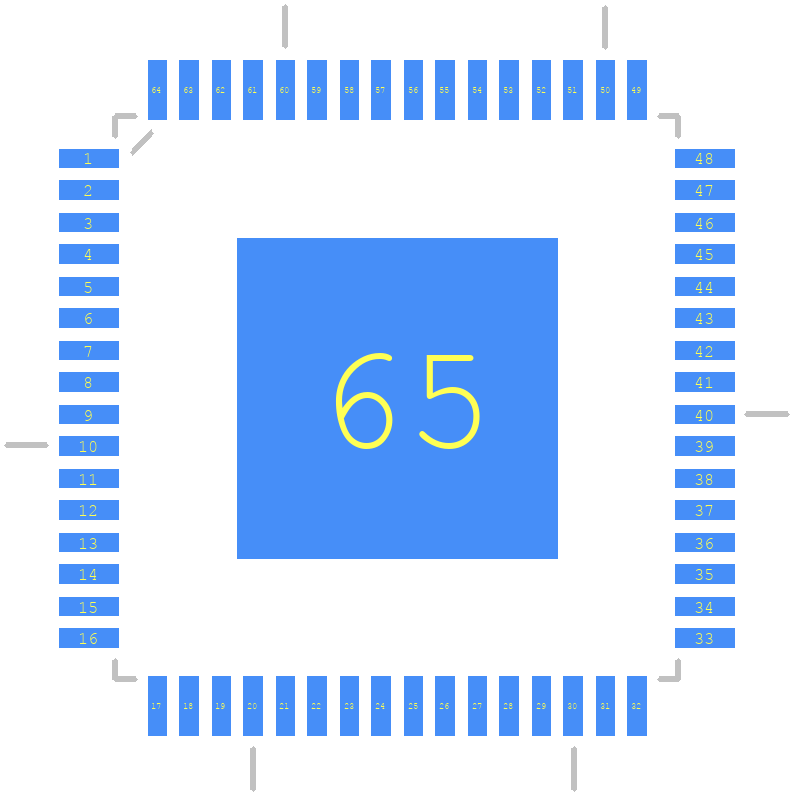

Use the download button to access the TAS5613APHD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS56,
or try a keyword search, such as Audio/Video Amplifiers
