TAS5613APHDR - Texas Instruments

TAS5613APHDR Details

• Manufacturer Part Number:

  TAS5613APHDR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

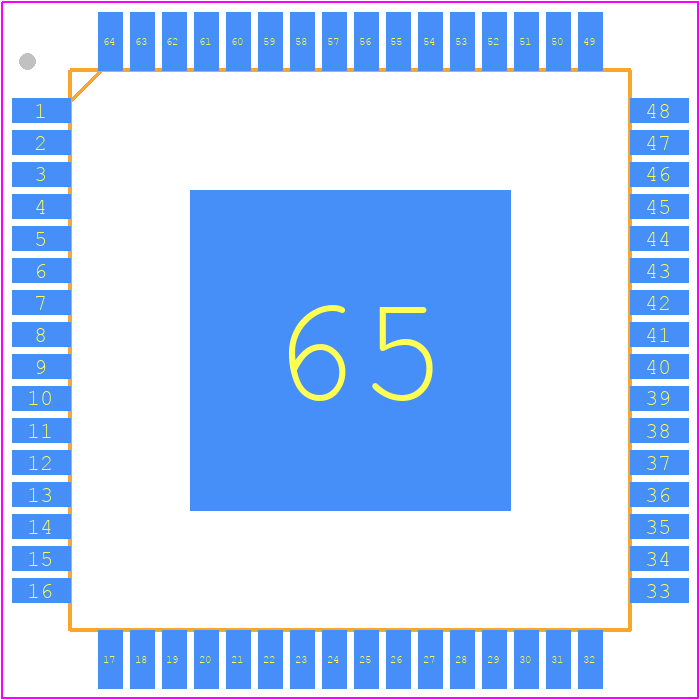

• Part Package Code:

  QFP

• Pin Count:

  64

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Consumer IC Type:

  CLASS D AUDIO AMPLIFIER

• Gain:

  21 dB

• JESD-30 Code:

  S-PQFP-G64

• JESD-609 Code:

  e4

• Length:

  14 mm

• Moisture Sensitivity Level:

  3

• Noise Figure-Nom:

  100 dB

• Number of Channels:

  2

• Number of Functions:

  1

• Number of Terminals:

  64

• Operating Temperature-Max:

  70 °C

• Output Power-Nom:

  150 W

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTQFP

• Package Equivalence Code:

  TQFP64,.63SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max (Vsup):

  13.2 V

• Supply Voltage-Min (Vsup):

  10.8 V

• Surface Mount:

  YES

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  14 mm
