SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
10.8 V
Supply Voltage-Min (Vsup):
13.2 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5622ADDVR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5622ADDVR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize the TAS5622ADDVR for low THD+N, ensure proper power supply decoupling, use a low-ESR capacitor for the output filter, and optimize the gain setting and output impedance. Additionally, consider using a high-quality, low-jitter clock source and ensuring the device is operated within its recommended operating conditions.
The maximum power dissipation of the TAS5622ADDVR is dependent on the operating conditions, such as supply voltage, output power, and ambient temperature. Refer to the thermal design and power dissipation sections in the datasheet for more information. In general, it is recommended to keep the junction temperature below 150°C to ensure reliable operation.
Yes, the TAS5622ADDVR is a Class-D audio amplifier and is suitable for use in Class-D amplifier designs. It features a high-efficiency, low-distortion architecture that makes it well-suited for high-power audio applications.
The TAS5622ADDVR has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it is still recommended to use external protection circuits, such as voltage regulators and transient voltage suppressors, to ensure the device is protected from voltage transients and faults.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5622ADDVR Overview

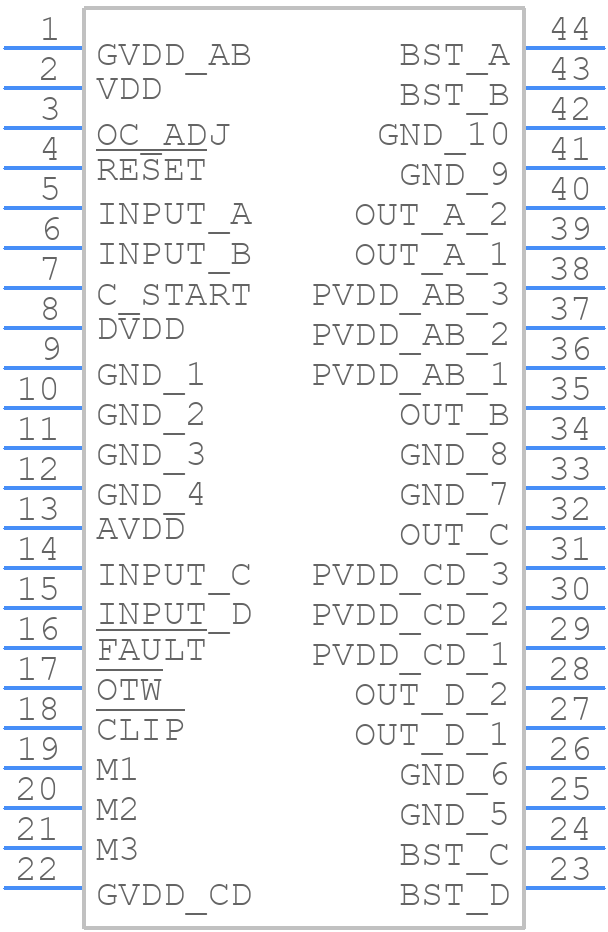

Use the download button to access the TAS5622ADDVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS56,
or try a keyword search, such as Audio/Video Amplifiers
