TAS5630BPHDR - Texas Instruments

Description: Analog input 300W Stereo class D amplifier with integrated feedback

Download TAS5630BPHDR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TAS5630BPHDR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

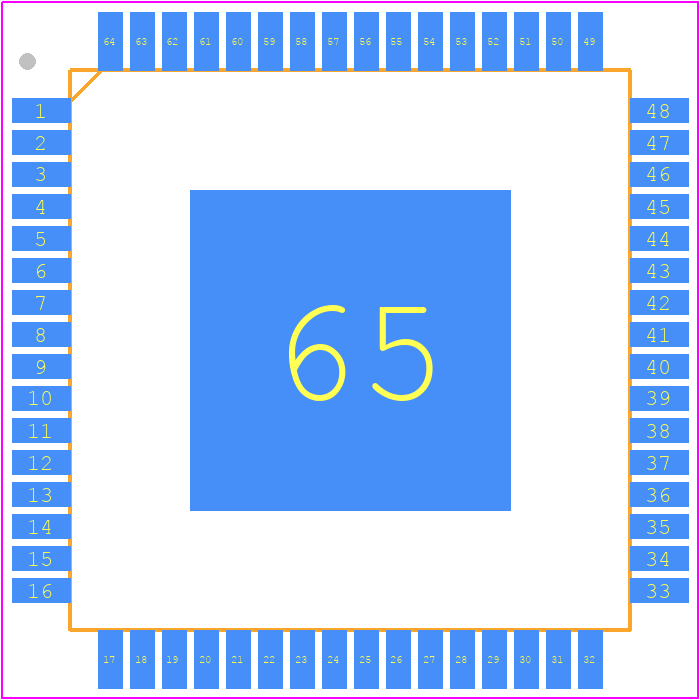

TAS5630BPHDR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PHD0064B
click to zoom
3D Models
TAS5630BPHDR - Texas Instruments - 3D model - Quad Flat Packages - PHD0064B
click to zoom

TAS5630BPHDR Details

  • Manufacturer Part Number:

    TAS5630BPHDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    23 dB

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    4

  • Noise Figure-Nom:

    100 dB

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    300 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTQFP

  • Package Equivalence Code:

    TQFP64,.63SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

TAS5630BPHDR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TAS5630BPHDR involves keeping the power supply lines and output lines separate, using a star-ground configuration, and placing the device close to the power supply. TI provides a recommended PCB layout in the datasheet and application notes.
  • To optimize thermal performance, ensure good airflow around the device, use a heat sink if possible, and avoid blocking the thermal pads on the bottom of the package. TI provides thermal design guidelines in the datasheet and application notes.
  • The recommended input clock frequency for the TAS5630BPHDR is between 256 kHz and 512 kHz. However, the device can operate with clock frequencies up to 1 MHz. Consult the datasheet for specific clock frequency requirements.
  • The TAS5630BPHDR can be configured for mono or stereo operation by setting the MODE pin high or low, respectively. Consult the datasheet for specific pin configurations and settings.
  • The maximum power output of the TAS5630BPHDR is 30W per channel into a 4Ω load. However, the actual power output may vary depending on the supply voltage, load impedance, and other factors. Consult the datasheet for specific power output specifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAS5630BPHDR Overview

Use the download button to access the TAS5630BPHDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS56, or try a keyword search, such as Audio/Video Amplifiers
