SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
13.2 V
Supply Voltage-Min (Vsup):
10.8 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5634DDV Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5634DDV evaluation module documentation, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
The output filter design depends on the specific application requirements. Texas Instruments provides a filter design tool and guidelines in the TAS5634DDV datasheet and application notes. The key is to balance the filter's attenuation, phase response, and component values to achieve the desired performance and stability.
The maximum allowed voltage on the PVCC pin is 15.5V, as specified in the TAS5634DDV datasheet. Exceeding this voltage can damage the device. It's essential to ensure that the power supply voltage is within the recommended range to maintain device reliability and performance.
To troubleshoot oscillations or instability issues, start by verifying the PCB layout, component values, and power supply voltage. Check for any signs of overheating, and ensure that the device is properly decoupled. Use an oscilloscope to analyze the output waveform and identify any anomalies. Consult the TAS5634DDV datasheet and application notes for guidance on troubleshooting and debugging techniques.
Yes, the TAS5634DDV can be used in Class-D amplifier designs with higher power outputs, but it's essential to ensure that the device is properly heat-sinked and that the PCB layout is optimized for thermal management. Additionally, the output filter design and component selection must be suitable for the higher power output. Consult the TAS5634DDV datasheet and application notes for guidance on designing high-power Class-D amplifiers.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5634DDV Overview

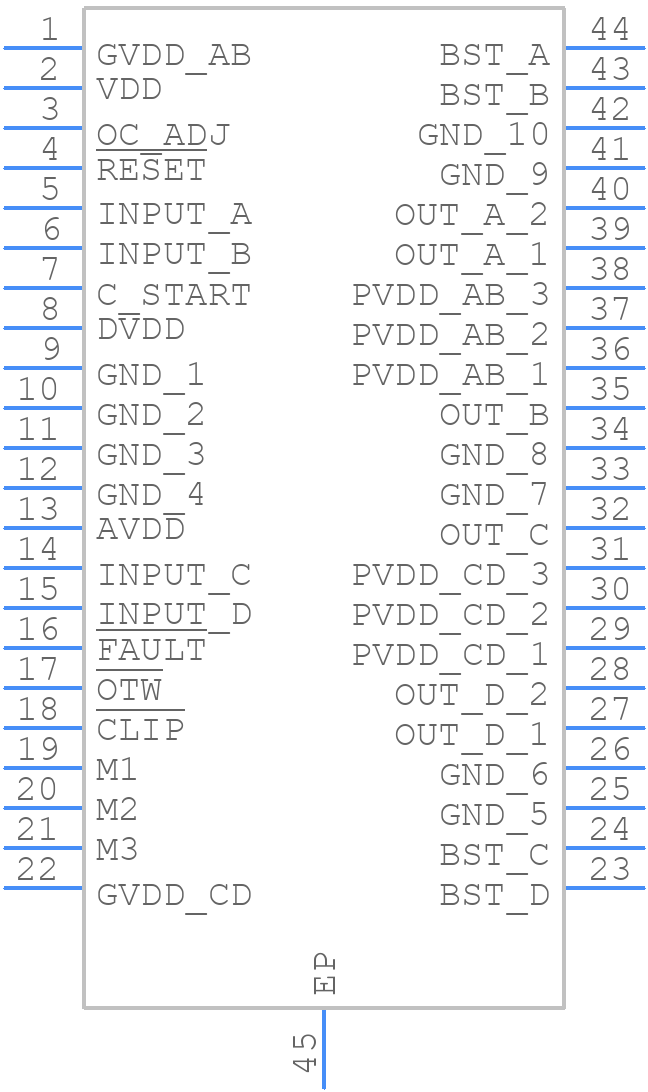

Use the download button to access the TAS5634DDV schematic symbol, PCB footprint, and 3D model.
