SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
13.2 V
Supply Voltage-Min (Vsup):
10.8 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5634DDVR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5634DDVR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The output filter design depends on the specific application requirements, such as output power, frequency, and load impedance. TI provides a filter design tool and application notes that can help engineers optimize the output filter design for their specific use case.
The maximum junction temperature (Tj) for the TAS5634DDVR is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
Yes, the TAS5634DDVR is a Class-D audio amplifier, and it's designed to be used in Class-D amplifier designs. It provides high efficiency, low distortion, and high power density, making it suitable for a wide range of audio applications.
The TAS5634DDVR has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, additional external protection circuits may be required depending on the specific application requirements. TI provides guidelines for overvoltage and undervoltage protection in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5634DDVR Overview

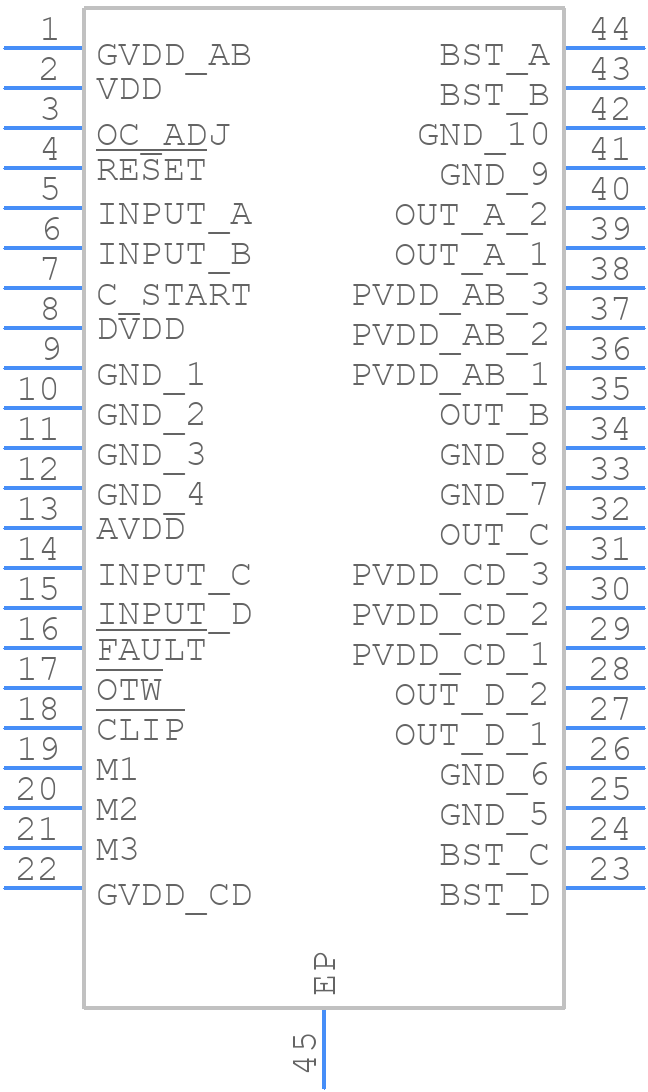

Use the download button to access the TAS5634DDVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS56,
or try a keyword search, such as Audio/Video Amplifiers
