TAS5701PAP - Texas Instruments

Description: 20-W Stereo I2S Audio Power Amplifier (H/W Controlled)

Download TAS5701PAP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TAS5701PAP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

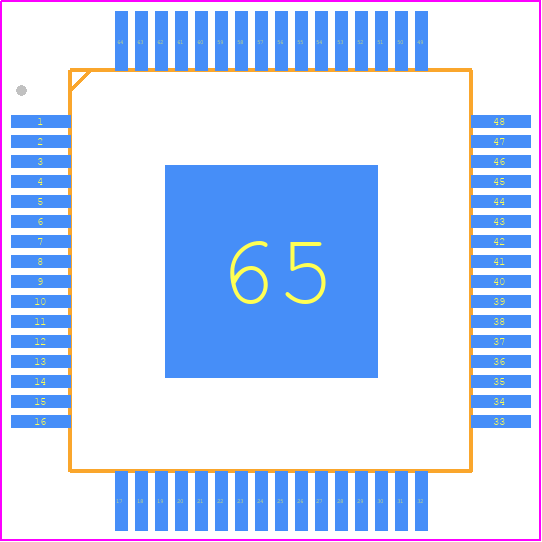

TAS5701PAP - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PAP0064N
click to zoom
3D Models
TAS5701PAP - Texas Instruments - 3D model - Quad Flat Packages - PAP0064N
click to zoom

TAS5701PAP Details

  • Manufacturer Part Number:

    TAS5701PAP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    64

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    100 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Output Power-Nom:

    20 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP64,.47SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    80 mA

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

TAS5701PAP Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
  • The TAS5701PAP can be configured for mono or stereo operation by setting the MONO/STEREO pin high or low, respectively. Additionally, the device can be configured through the I2C interface using the MONO/STEREO register.
  • The TAS5701PAP can handle up to 20W of power per channel, making it suitable for a wide range of audio applications.
  • The TAS5701PAP has a built-in thermal protection feature that can be enabled through the I2C interface. The device will automatically shut down if the junction temperature exceeds 150°C. Additionally, external thermal sensing and shutdown circuits can be implemented using external components.
  • The recommended layout and routing for the TAS5701PAP involves keeping the analog and digital power supply traces separate, using a solid ground plane, and minimizing the length of the clock signal trace. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
