FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
80 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm
TAS5706APAPR Frequently Asked Questions (FAQs)
The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
The TAS5706APAPR can be configured using the I2C interface to set parameters such as gain, filter coefficients, and audio processing modes. Refer to the device's programming guide and audio processing data sheet for specific configuration details.
The TAS5706APAPR is a line driver and not a power amplifier, so it is not designed to handle high power levels. The maximum output current is limited to 30mA per channel, and the device should be used with an external power amplifier or speaker driver for high-power applications.
Yes, the TAS5706APAPR is a stereo audio codec and can be used in stereo audio applications. It has two independent audio channels, each with its own DAC, filter, and amplifier.
Common audio quality issues with the TAS5706APAPR include noise, distortion, and clipping. Troubleshooting steps include checking the power supply, clock signal, and audio input signals, as well as verifying the device configuration and audio processing settings.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5706APAPR Overview

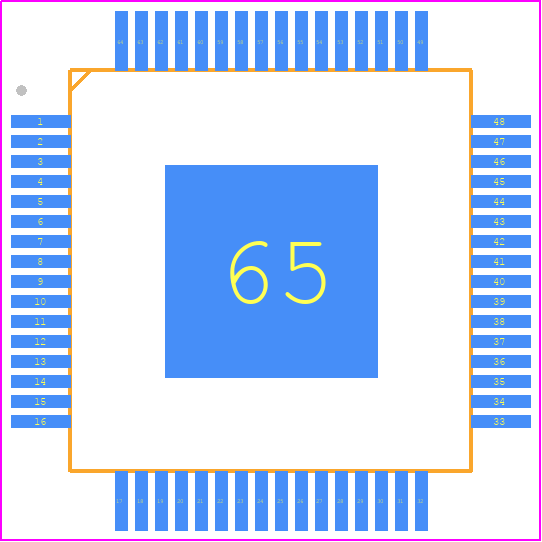

Use the download button to access the TAS5706APAPR schematic symbol, PCB footprint, and 3D model.
