FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
80 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm
TAS5706PAP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended layout and routing guide in the TAS5706PAP Evaluation Module (EVM) user's guide, which can be found on the TI website. It's essential to follow this guide to ensure proper operation and minimize electromagnetic interference (EMI).
To optimize the TAS5706PAP for low noise and distortion, ensure that the power supply is well-regulated and decoupled, use a low-ESR capacitor for the PVCC pin, and keep the analog and digital grounds separate. Additionally, use a shielded cable for the audio input and output, and keep the device away from high-frequency noise sources.
The TAS5706PAP is a 20-W class-D audio amplifier, and its maximum power handling capability depends on the supply voltage, load impedance, and ambient temperature. According to the datasheet, the device can deliver up to 20 W of continuous power into a 4-Ω load with a 12-V supply voltage. However, it's essential to ensure that the device is properly heat-sinked and operated within its recommended operating conditions to avoid overheating and damage.
The TAS5706PAP supports various audio formats and sampling rates through its I2S and SPI interfaces. To configure the device for different audio formats and sampling rates, refer to the datasheet and the TAS5706PAP programming guide, which provides detailed information on the device's registers and configuration options. Additionally, Texas Instruments provides a software development kit (SDK) that includes example code and tools to help with device configuration and programming.
The TAS5706PAP is a high-power audio amplifier, and proper thermal management is crucial to ensure reliable operation and prevent overheating. The device has a thermal pad on the bottom that must be connected to a heat sink or a thermal plane on the PCB. Ensure that the heat sink is properly sized and attached, and that the device is operated within its recommended operating temperature range (-40°C to 85°C).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5706PAP Overview

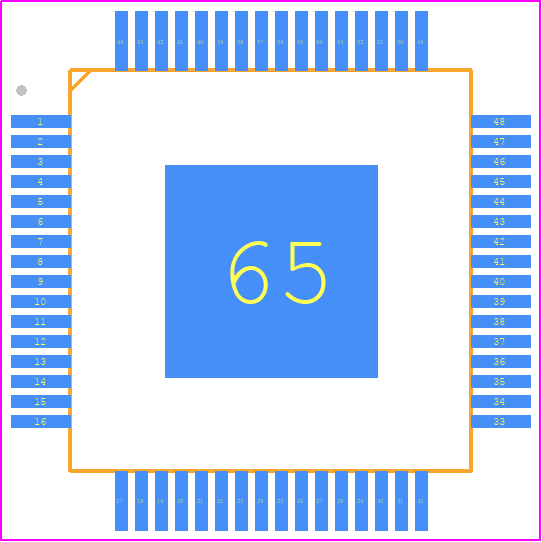

Use the download button to access the TAS5706PAP schematic symbol, PCB footprint, and 3D model.
