FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
83 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
TAS5707PHP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended layout and routing guide in the TAS5707PHP Evaluation Module (EVM) user's guide, which can be found on the TI website. It's essential to follow this guide to ensure proper operation and minimize electromagnetic interference (EMI).
To optimize thermal performance, ensure good airflow around the device, use a heat sink if possible, and follow the recommended PCB layout and thermal pad connection guidelines. Additionally, reduce the device's power consumption by optimizing the audio signal and using the device's power-saving features.
When designing a power supply for the TAS5707PHP, critical components to consider include the input voltage regulator, output voltage regulator, and decoupling capacitors. Ensure that the power supply can provide a stable voltage within the recommended range (e.g., 12V ±10%) and that the output voltage ripple is minimized.
To troubleshoot audio quality issues, check the audio signal integrity, ensure proper clocking and synchronization, and verify that the device is properly configured. Also, check for electromagnetic interference (EMI) and radio-frequency interference (RFI) issues, and ensure that the device is operating within its recommended temperature range.
When designing a filter for the TAS5707PHP's analog inputs, key considerations include the filter's cutoff frequency, roll-off rate, and impedance matching. Ensure that the filter does not attenuate the desired audio frequency range and that it provides adequate noise rejection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5707PHP Overview

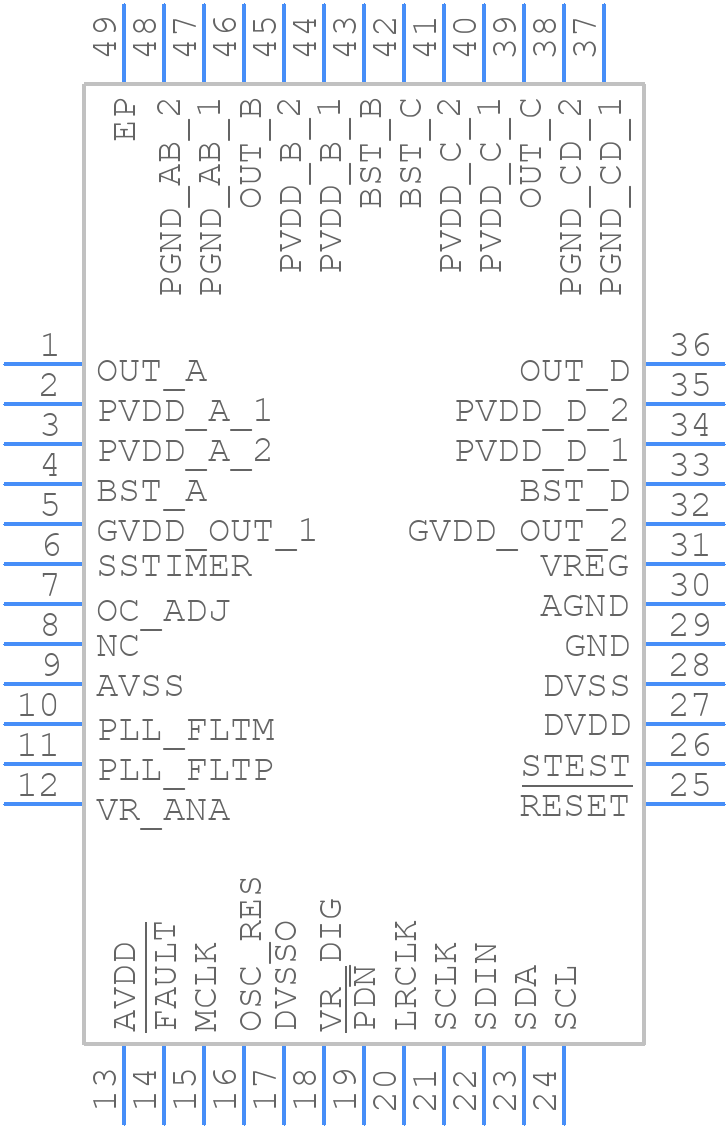

Use the download button to access the TAS5707PHP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57,
or try a keyword search, such as Audio/Video Amplifiers
