FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
83 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
TAS5707PHPR Frequently Asked Questions (FAQs)
The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
To optimize for low power consumption, use the device's built-in power-saving features such as dynamic voltage scaling, clock gating, and shutdown modes. Additionally, optimize the clock frequency, reduce the analog supply voltage, and use a low-power mode for the digital core.
The maximum allowed capacitance for the analog output filters is 10nF. Exceeding this value may affect the device's stability and performance.
To troubleshoot audio artifacts or distortion issues, check the device's clock frequency, analog supply voltage, and output filter configuration. Ensure that the device is properly configured and that the analog output is not overloaded. Also, verify that the input audio signal is within the recommended specifications.
Yes, the TAS5707PHPR can be used with a separate ADC for audio input. However, ensure that the ADC's output is compatible with the TAS5707PHPR's digital input requirements, and that the ADC's clock frequency is synchronized with the TAS5707PHPR's clock frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5707PHPR Overview

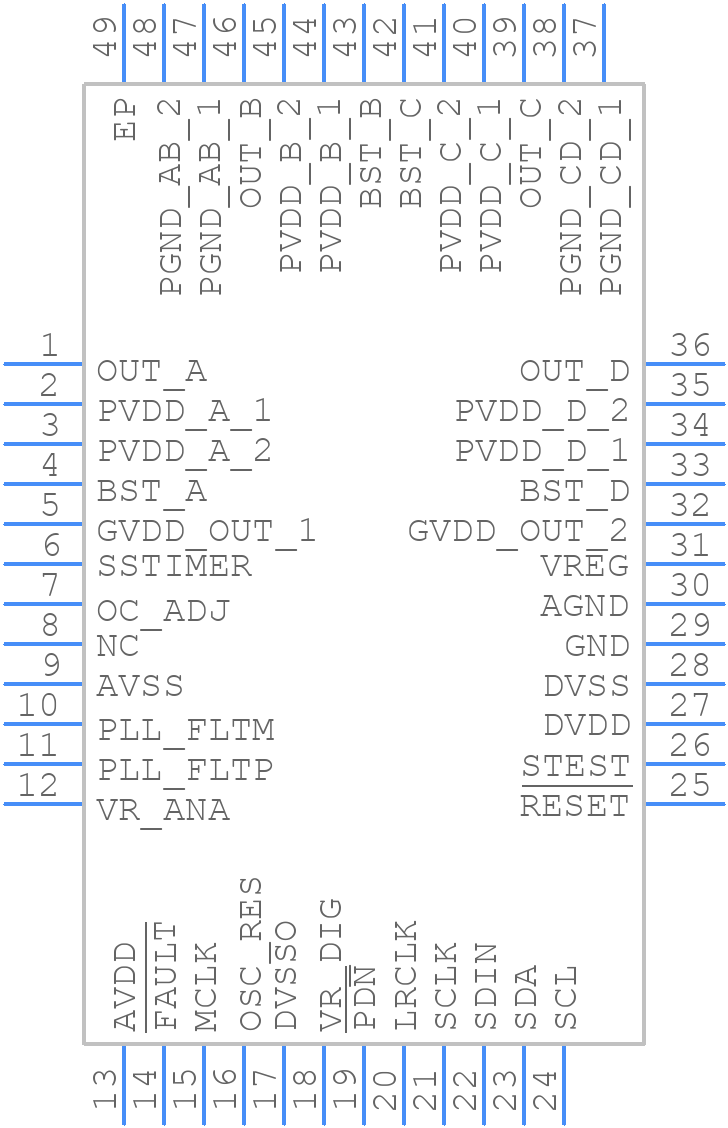

Use the download button to access the TAS5707PHPR schematic symbol, PCB footprint, and 3D model.
