TAS5708PHP - Texas Instruments

Description: 20-W Stereo Closed-Loop I2S Audio Power Amplifier with Speaker EQ and DRC

Download TAS5708PHP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

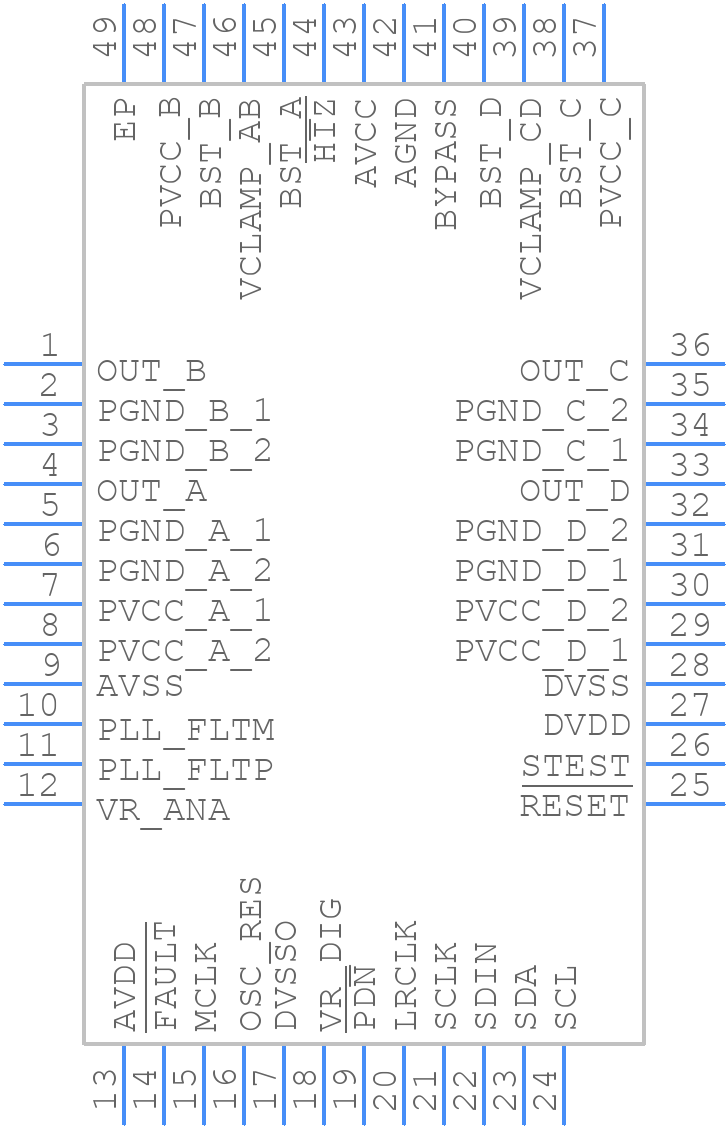

TAS5708PHP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS5708PHP - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PHP0048G
click to zoom
3D Models
TAS5708PHP - Texas Instruments - 3D model - Quad Flat Packages - PHP0048G
click to zoom

TAS5708PHP Details

  • Manufacturer Part Number:

    TAS5708PHP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Country Of Origin:

    Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO REQUIRES 3.3V DIGITAL SUPPLY

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Output Power-Nom:

    20.2 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    77 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TAS5708PHP Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply PVDD (analog power) first, followed by DVDD (digital power), and then the clock signal. This ensures proper initialization of the device.
  • To optimize thermal performance, ensure good airflow around the device, use a heat sink if possible, and avoid blocking the thermal pads on the package. Additionally, minimize the power dissipation by optimizing the system design and reducing the current consumption.
  • The maximum allowed clock jitter for the TAS5708PHP is 100 ppm. Exceeding this value may affect the device's performance and audio quality.
  • The TAS5708PHP is designed to operate with a 1.8V digital supply (DVDD) and 3.3V analog supply (PVDD). While it may be possible to use the device with different voltage supplies, it is not recommended and may affect the device's performance and reliability.
  • To troubleshoot audio issues, check the clock signal, power supplies, and analog output connections. Verify that the device is properly configured and that the audio data is being transmitted correctly. Use an oscilloscope or audio analyzer to inspect the audio signal and identify any issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAS5708PHP Overview

Use the download button to access the TAS5708PHP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57, or try a keyword search, such as Audio/Video Amplifiers
