FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
80 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm
TAS5716PAPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5716PAPR evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize EMI and thermal issues.
To optimize the TAS5716PAPR's performance, you should consider factors such as the input signal type, output load, and desired audio quality. You can adjust the device's settings, such as the gain, filter coefficients, and clock frequency, to achieve the best possible performance for your specific application. Texas Instruments also provides application notes and software tools to help with optimization.
The TAS5716PAPR has a maximum junction temperature of 150°C. To ensure reliable operation, you should provide adequate heat sinking, such as a thermal pad or heat sink, and ensure good airflow around the device. You should also follow Texas Instruments' guidelines for thermal management, including keeping the device within the recommended operating temperature range and avoiding thermal shocks.
To troubleshoot common issues with the TAS5716PAPR, you should first consult the datasheet and application notes to ensure that the device is properly configured and that the input signals are within the recommended specifications. You can also use Texas Instruments' software tools, such as the PurePath Console, to analyze the device's performance and identify potential issues. Additionally, you can try adjusting the device's settings, such as the gain or filter coefficients, to see if it resolves the issue.
The TAS5716PAPR has specific power sequencing requirements to ensure proper operation. You should power up the device in the following order: AVDD, DVDD, and then PVDD. When powering down, you should reverse this order. You should also ensure that the power supplies are stable and within the recommended voltage ranges before applying them to the device.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TAS5716PAPR Overview

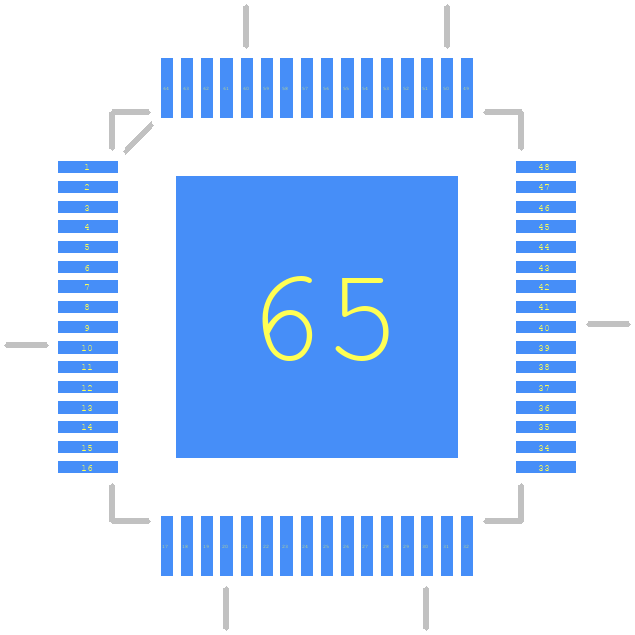

Use the download button to access the TAS5716PAPR schematic symbol, PCB footprint, and 3D model.
