A good PCB layout for the TAS5722LRSMR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. TI provides a recommended PCB layout in the datasheet and application notes.
To optimize thermal performance, ensure good airflow around the device, use a heat sink if possible, and avoid blocking the thermal pads on the package. TI also provides thermal design guidelines in the datasheet.
The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures proper device initialization and prevents latch-up.
TI provides a troubleshooting guide in the datasheet and application notes. Common issues include incorrect power-up sequence, inadequate power supply decoupling, and incorrect clock configuration. Use an oscilloscope to verify signal integrity and check the device's status registers for error flags.
To ensure EMI and EMC compliance, use a shielded enclosure, keep the device away from antennas and other EMI-sensitive components, and use EMI filters on the power supply and signal lines. TI provides EMI and EMC guidelines in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5722LRSMR Overview

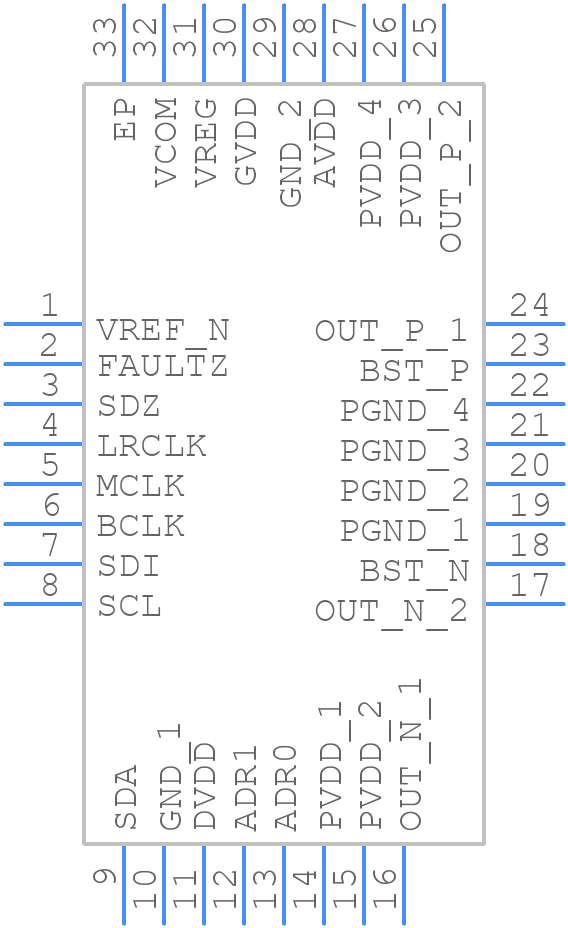

Use the download button to access the TAS5722LRSMR schematic symbol, PCB footprint, and 3D model.
