FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
50 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
TAS5731MPHP Frequently Asked Questions (FAQs)
A good PCB layout for the TAS5731MPHP involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a shielded inductor and keeping the high-current paths short can help reduce EMI.
To optimize thermal performance, ensure good airflow around the device, use a heat sink if possible, and avoid blocking the thermal pads on the package. Also, minimize the power dissipation by optimizing the output filter design and using a high-efficiency output stage.
A recommended input filter design for the TAS5731MPHP includes a pi-filter (C-L-C) or a T-filter (L-C-L) with a common-mode choke and X-capacitors. This helps to attenuate high-frequency noise and prevent EMI.
To troubleshoot issues with the TAS5731MPHP, start by checking the power supply voltage, output filter design, and PCB layout. Use an oscilloscope to measure the output voltage and current, and check for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and optimization.
When selecting output filter components for the TAS5731MPHP, consider the inductor value, capacitor value, and damping resistor value. Choose components that provide the desired cutoff frequency, attenuation, and stability. Consult the datasheet and application notes for guidance on output filter design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5731MPHP Overview

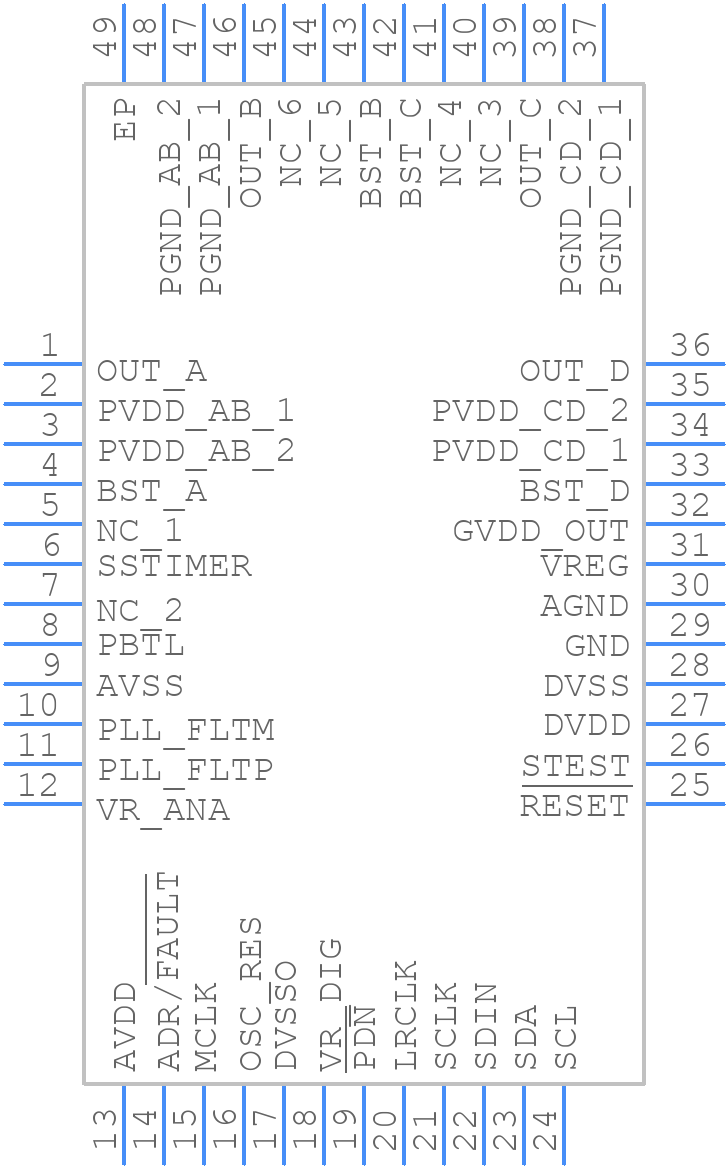

Use the download button to access the TAS5731MPHP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57,
or try a keyword search, such as Audio/Video Amplifiers
