SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
26.4 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TAS5805MPWPR Frequently Asked Questions (FAQs)
The recommended power-up sequence is to apply PVDD first, followed by AVDD, and then DVDD. This ensures that the internal voltage regulators are powered up in the correct order.
To optimize for low power consumption, ensure that the device is operated at the lowest possible clock frequency, disable unused features, and use the power-down modes (e.g., standby or shutdown) when not in use.
The maximum allowed capacitance for the AVDD and DVDD power pins is 10uF. Exceeding this value may cause power-up issues or affect the device's performance.
To troubleshoot audio artifacts or distortion issues, check the clock frequency, ensure proper power supply decoupling, and verify that the analog and digital grounds are properly separated. Also, check for any signal integrity issues on the audio signal paths.
The recommended layout and routing for the TAS5805MPWPR involves keeping the analog and digital signal paths separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, ensure that the power supply decoupling capacitors are placed close to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5805MPWPR Overview

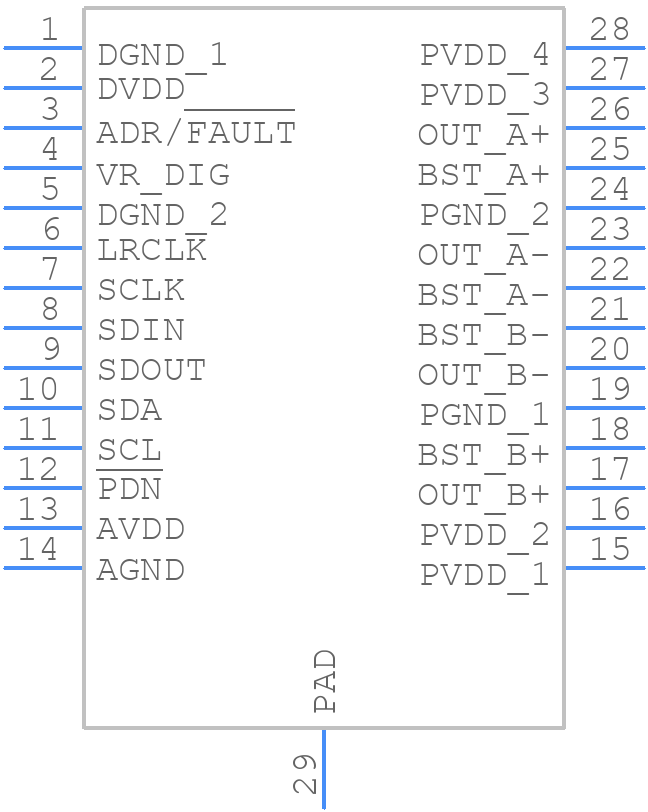

Use the download button to access the TAS5805MPWPR schematic symbol, PCB footprint, and 3D model.
