TAS5806MDDCPR - Texas Instruments

Description: 23W stereo, digital closed-loop Class-D audio amp with processing and headphone driver

Download TAS5806MDDCPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

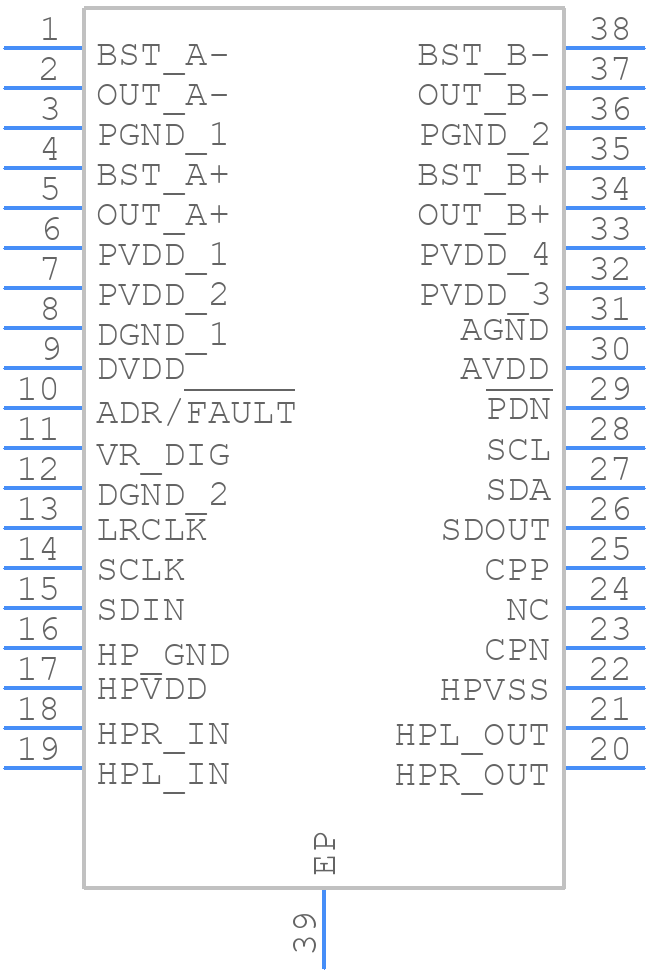

TAS5806MDDCPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS5806MDDCPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DCP0038A
click to zoom
3D Models
TAS5806MDDCPR - Texas Instruments - 3D model - Small Outline Packages - DCP0038A
click to zoom

TAS5806MDDCPR Details

  • Manufacturer Part Number:

    TAS5806MDDCPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-07-04

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    PVDD POWER 4.5V MIN SNF 26.4V MAX REQUIRED TO DRIVE OUTPUT STAGE

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    107 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Power-Nom:

    23 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    1.62 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TAS5806MDDCPR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to first apply the analog power supply (AVDD) and then the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The TAS5806MDDCPR can be configured using the I2C interface. The device has several registers that can be programmed to configure the device for a specific audio application. Refer to the datasheet for the register map and programming details.
  • The TAS5806MDDCPR is a 20-W class-D audio amplifier. The maximum power that it can deliver to a speaker depends on the supply voltage and the impedance of the speaker. Refer to the datasheet for the power derating curves.
  • The TAS5806MDDCPR has a built-in thermal protection circuit that shuts down the device if the junction temperature exceeds 150°C. However, it is recommended to provide adequate heat sinking and airflow to prevent overheating.
  • Yes, the TAS5806MDDCPR is a stereo audio amplifier. It has two channels, left and right, which can be configured independently. Each channel has its own set of input pins and output pins.
