Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors to ensure optimal performance.
To minimize noise and distortion, ensure proper power supply decoupling, use a low-noise power supply, and optimize the PCB layout for minimal electromagnetic interference (EMI). Additionally, use a high-quality input signal and ensure proper gain staging.
The TAS6424EQDKQRQ1 can handle up to 100 W of power per channel. However, the actual power handling capability depends on the specific application, thermal design, and heat sink implementation.
Implement a proper thermal design, including a heat sink, thermal interface material, and adequate airflow. Monitor the device temperature and implement thermal shutdown or warning mechanisms to prevent overheating.
Use a high-quality audio analyzer or oscilloscope to measure the device's performance. Follow the test procedures outlined in the datasheet, and ensure proper calibration and setup of the test equipment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS6424EQDKQRQ1 Overview

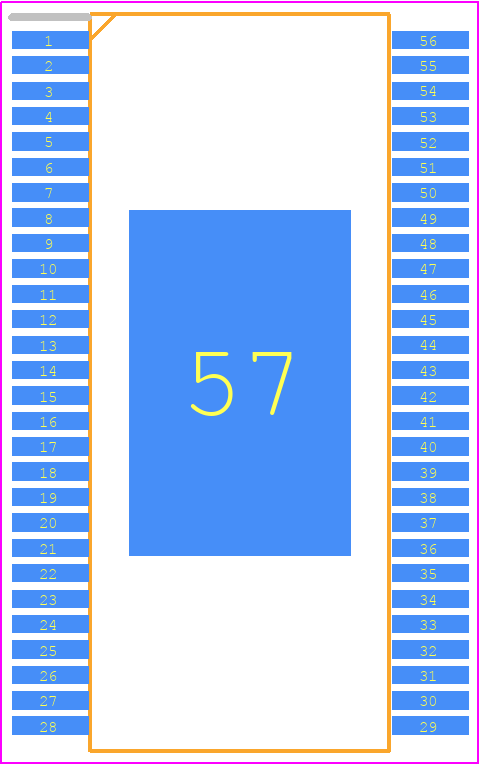

Use the download button to access the TAS6424EQDKQRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS64,
or try a keyword search, such as Audio/Video Amplifiers
