TAS6754QDKQRQ1 - Texas Instruments

TAS6754QDKQRQ1 Details

• Manufacturer Part Number:

  TAS6754QDKQRQ1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Bandwidth-Nom:

  500 kHz

• Consumer IC Type:

  CLASS D AUDIO AMPLIFIER

• JESD-30 Code:

  R-PDSO-G56

• JESD-609 Code:

  e4

• Length:

  18.415 mm

• Moisture Sensitivity Level:

  3

• Noise Figure-Nom:

  109 dB

• Number of Channels:

  4

• Number of Functions:

  1

• Number of Terminals:

  56

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Power-Nom:

  50 W

• Package Body Material:

  PLASTIC/EPOXY

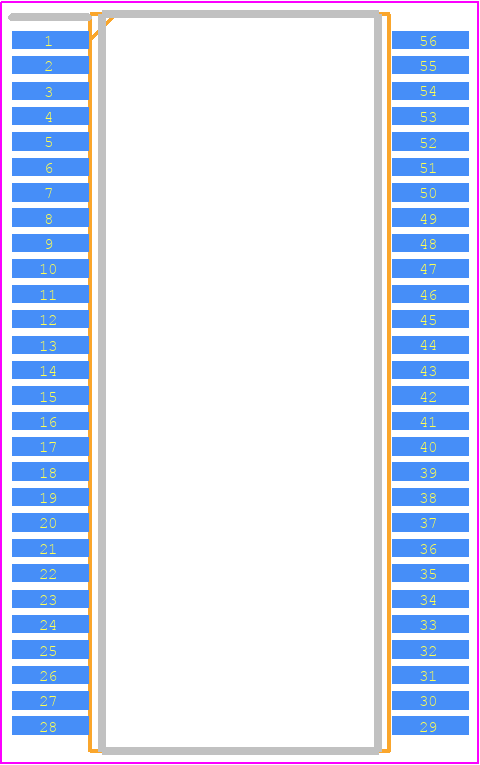

• Package Code:

  HSSOP

• Package Equivalence Code:

  SSOP56,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  2.475 mm

• Supply Current-Max:

  28 mA

• Supply Voltage-Max (Vsup):

  19 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Surface Mount:

  YES

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.635 mm

• Terminal Position:

  DUAL

• Width:

  7.49 mm
