TB5D2HLDR - Texas Instruments

Description: LVDS Interface IC Hi Spd Diff Line Drvr

Download TB5D2HLDR Model
Schematic
symbols

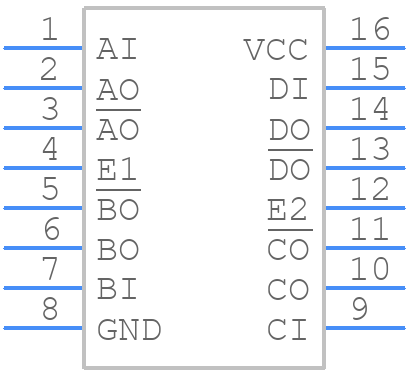

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TB5D2HLDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
TB5D2HLDR - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

TB5D2HLDR Details

  • Manufacturer Part Number:

    TB5D2HLDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Interface IC Type:

    LINE DRIVER

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    2

  • Peak Reflow Temperature (Cel):

    250

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TB5D2HLDR Overview

Use the download button to access the TB5D2HLDR schematic symbol, PCB footprint, and 3D model.
