TCAN1048AVDRQ1 footprint, schematic symbol and 3D model by Texas Instruments

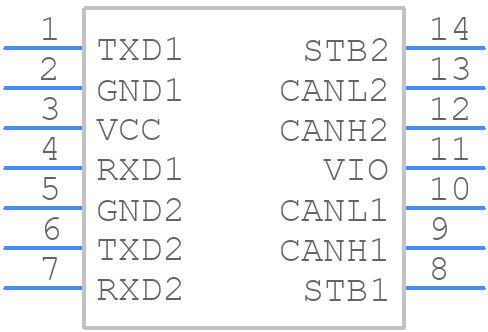

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TCAN1048AVDRQ1
Part Number TCAN1048AVDRQ1
Manufacturer Texas Instruments
Pin Count 14
Part Category Accelerometer
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOIC14TCAN
Pinout / Pin List Click Here (Member Only)

TCAN1048AVDRQ1 Details

Manufacturer Part Number:
TCAN1048AVDRQ1
Brand Name:
Texas Instruments
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.90
Manufacturer:
Texas Instruments
YTEOL:
15
Data Rate:
8000 Mbps
JESD-30 Code:
R-PDSO-N14
JESD-609 Code:
e4
Length:
8.65 mm
Moisture Sensitivity Level:
1
Number of Channels:
2
Number of Functions:
2
Number of Terminals:
14
Number of Transceivers:
2
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP14,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.75 mm
Supply Current-Max:
260 mA
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Telecom IC Type:
CAN FD TRANSCEIVER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Width:
4.9 mm

TCAN1048AVDRQ1 Frequently Asked Questions (FAQs)

The maximum cable length supported by TCAN1048AVDRQ1 is 40 meters, assuming a proper termination and a maximum bit rate of 1 Mbps.
To configure the TCAN1048AVDRQ1 for silent mode, you need to set the STB pin high and the EN pin low. This will put the transceiver in a low-power state, and it will not transmit or receive data.
For optimal performance, it is recommended to follow a star topology for the CAN bus, with the transceiver at the center. Keep the CANH and CANL traces as short as possible, and use a differential pair with a 120-ohm impedance. Also, avoid routing the CAN bus near noise sources or high-current paths.
The TCAN1048AVDRQ1 has built-in fault detection and error reporting capabilities. You can use the ESR pin to detect bus faults, and the RXE pin to detect receive errors. You can also use the device's error counters to detect and diagnose errors on the CAN bus.
The recommended power-up sequence for the TCAN1048AVDRQ1 is to first power up the VCC pin, followed by the VIO pin. This ensures that the internal voltage regulators are properly initialized before the device starts operating.

Trust Checks

System Verified

TCAN1048AVDRQ1 Overview

Use the download button to access the TCAN1048AVDRQ1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TCAN1, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
