FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
370 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
14 mm
TFP401AMPZPEP Frequently Asked Questions (FAQs)
A good PCB layout for the TFP401AMPZPEP involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the HDMI connector. Additionally, the device's power pins should be decoupled with 0.1uF capacitors.
To ensure proper configuration, refer to the TFP401AMPZPEP's datasheet and application notes. Configure the device's registers according to your specific HDMI application's requirements, such as setting the correct HDMI mode, pixel clock frequency, and audio configuration.
The TFP401AMPZPEP has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Avoid blocking the airflow around the device and ensure the PCB is designed to dissipate heat efficiently.
To troubleshoot issues with the TFP401AMPZPEP, start by verifying the device's configuration and register settings. Check the HDMI signal quality, clock frequencies, and audio settings. Use oscilloscopes or logic analyzers to debug the signal transmission. Consult the datasheet and application notes for troubleshooting guidelines.
The TFP401AMPZPEP has built-in ESD protection, but it's still important to follow proper ESD handling procedures during manufacturing and assembly. Use ESD-safe materials, handle the device by the body or anti-static wrist strap, and avoid touching the device's pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TFP401AMPZPEP Overview

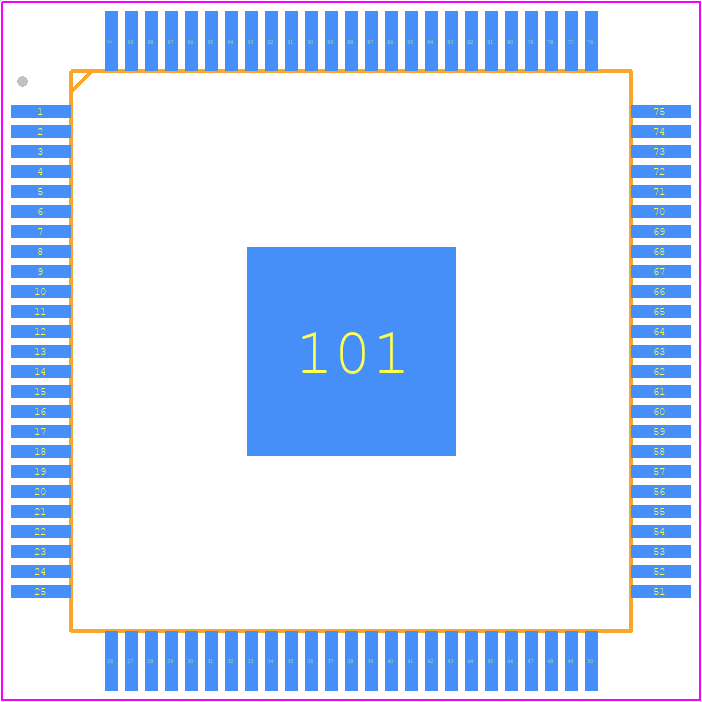

Use the download button to access the TFP401AMPZPEP schematic symbol, PCB footprint, and 3D model.
