FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
400 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
14 mm
TFP401APZPG4 Frequently Asked Questions (FAQs)
A good PCB layout for the TFP401APZPG4 involves placing the device close to the HDMI connector, using a solid ground plane, and minimizing the length of the HDMI traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The TFP401APZPG4 is a highly configurable device, and the configuration for a specific HDMI resolution depends on the specific application. In general, you'll need to set the correct clock frequency, pixel clock, and video format using the device's registers. Consult the datasheet and the HDMI specification for more information.
The TFP401APZPG4 supports HDMI cable lengths of up to 30 meters at 1080p resolution, but this can vary depending on the specific application and the quality of the cable. It's recommended to use high-quality HDMI cables and to follow the HDMI specification for cable length and quality guidelines.
To troubleshoot HDMI signal integrity issues with the TFP401APZPG4, use an oscilloscope to measure the HDMI signal quality, check for signal attenuation, and verify that the device is configured correctly. Also, ensure that the PCB layout is correct, and that the device is properly powered and grounded.
Yes, the TFP401APZPG4 can be used with an FPGA or ASIC. In fact, the device is designed to be highly flexible and can be used with a variety of digital signal processing devices. However, you'll need to ensure that the FPGA or ASIC is configured correctly to work with the TFP401APZPG4, and that the device is properly integrated into the overall system design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TFP401APZPG4 Overview

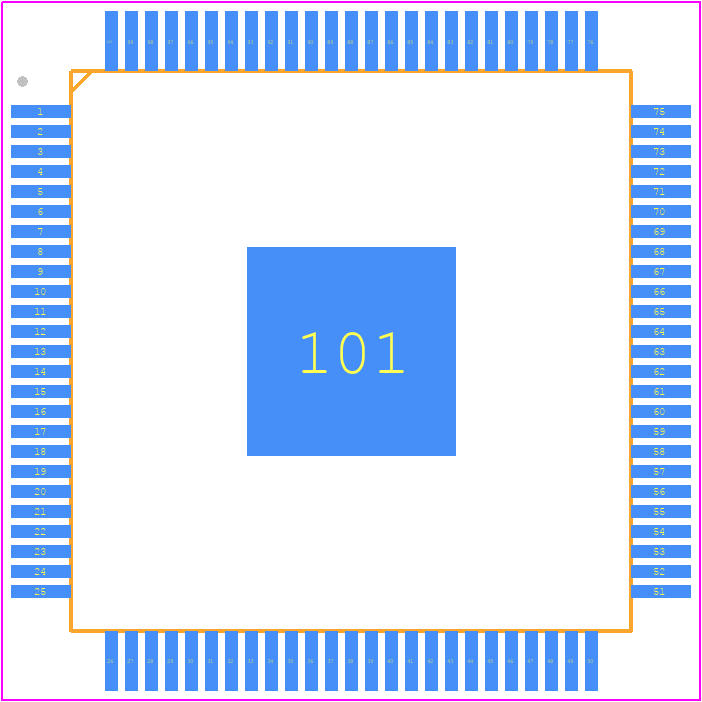

Use the download button to access the TFP401APZPG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TFP40,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
