TFP410PAP - Texas Instruments

Description: 165-MHz TMDS DVI transmitter/serializer & Panelbus™ integrated circuit

Download TFP410PAP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TFP410PAP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

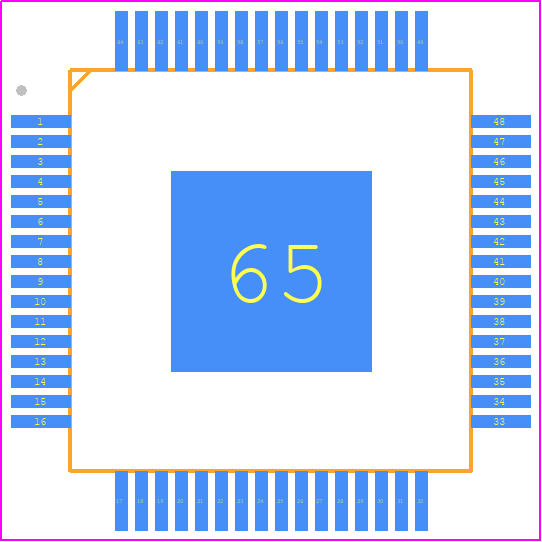

TFP410PAP - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PAP (S-PQFP-G64)
click to zoom
3D Models
TFP410PAP - Texas Instruments - 3D model - Quad Flat Packages - PAP (S-PQFP-G64)
click to zoom

TFP410PAP Details

  • Manufacturer Part Number:

    TFP410PAP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    64

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Input Mode:

    SERIAL/PARALLEL

  • Display Mode:

    DOT MATRIX

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    3

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP64,.47SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    250 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

  • fmax-Min:

    165 MHz

TFP410PAP Frequently Asked Questions (FAQs)

  • A good PCB layout for the TFP410PAP involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded cable for the HDMI output can help reduce EMI.
  • The TFP410PAP requires a 3.3V power supply, and it's recommended to power the device after the HDMI input is stable. A soft-start circuit can be used to ensure proper power sequencing and reduce inrush current.
  • The recommended termination resistors for the HDMI output are 50Ω resistors on each of the four differential pairs (TMDS clock and data lines). This helps to ensure signal integrity and reduce reflections.
  • The TFP410PAP can be configured for specific HDMI resolutions and frequencies using the I2C interface. The device has a set of registers that control the HDMI output, including the pixel clock frequency, resolution, and color depth.
  • The TFP410PAP has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 120°C. A thermal pad or heat sink can be used to dissipate heat, and the device should be placed in a well-ventilated area.
