Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces. Additionally, it's recommended to place the device close to the analog-to-digital converter (ADC) and use a low-impedance power supply.
To optimize the THS1403IPFB for a specific input signal frequency, you can adjust the gain and bandwidth of the amplifier by selecting the appropriate values for the external resistors and capacitors. Texas Instruments provides a gain and bandwidth calculator tool to help with this process. Additionally, you can use simulation tools such as SPICE or MATLAB to model the amplifier's behavior and optimize its performance.
The maximum input signal amplitude that the THS1403IPFB can handle is dependent on the supply voltage and the gain setting. According to the datasheet, the maximum input signal amplitude is typically around 2.5Vpp (peak-to-peak) for a gain of 1V/V and a supply voltage of 5V. However, this value can be affected by the specific application and operating conditions, so it's recommended to consult the datasheet and perform simulations or testing to determine the maximum input signal amplitude for your specific use case.
To ensure the THS1403IPFB is operating within its specified noise floor, you can take several precautions. First, make sure to use a low-noise power supply and decouple the device with high-quality capacitors. Second, use a well-designed PCB layout with minimal noise coupling and radiation. Third, use shielding and grounding techniques to minimize electromagnetic interference (EMI). Finally, consider using noise-reduction techniques such as filtering or averaging to further reduce the noise floor.
The typical power consumption of the THS1403IPFB is around 130mW per channel, assuming a 5V supply voltage and a gain of 1V/V. However, this value can vary depending on the specific application and operating conditions, such as the input signal frequency and amplitude. It's recommended to consult the datasheet and perform simulations or testing to determine the power consumption for your specific use case.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS1403IPFB Overview

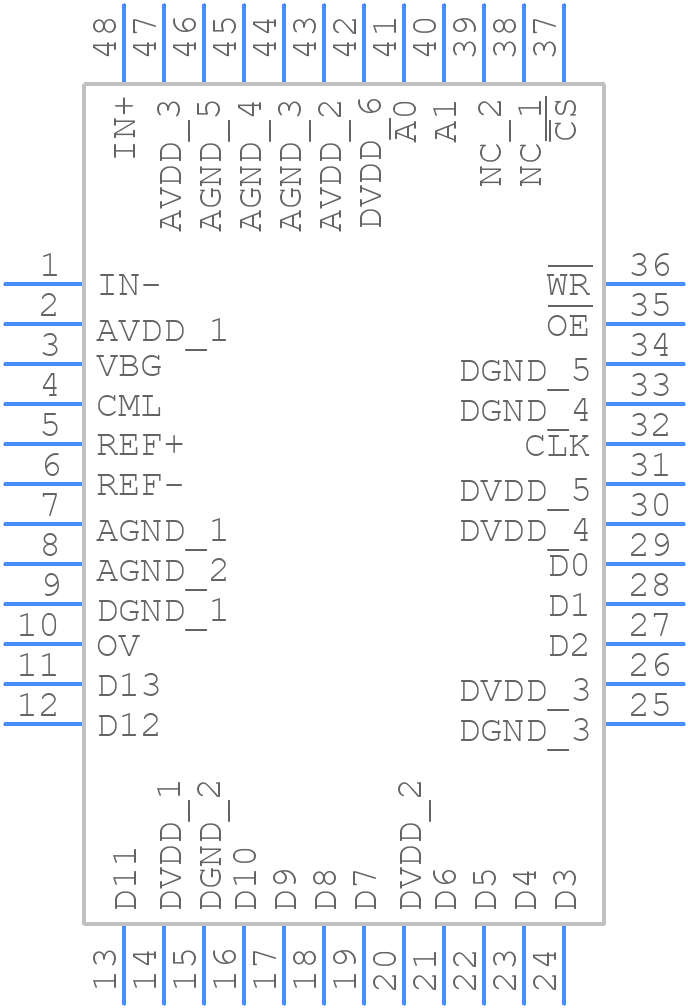

Use the download button to access the THS1403IPFB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS14,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
