SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Slew Rate-Nom:
7000 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
20 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
300000
Wideband:
YES
Width:
3 mm
THS3062DGNG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS3062DGNG4 evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The selection of input and output termination resistors depends on the specific application and signal requirements. TI provides a termination resistor calculator tool to help designers select the optimal resistors for their design. Additionally, the THS3062DGNG4 datasheet provides general guidelines for termination resistor selection.
The THS3062DGNG4 is rated for operation from -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, and designers should consult the datasheet for specific temperature-related specifications and limitations.
While the THS3062DGNG4 is optimized for 50Ω systems, it can be used in non-50Ω systems with proper impedance matching. However, designers should be aware that the device's performance may be affected, and additional circuitry may be required to achieve optimal performance.
To ensure EMI compliance, designers should follow proper PCB layout and design practices, such as using shielding, grounding, and filtering techniques. TI also provides EMI-related guidelines and resources to help designers meet EMI standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS3062DGNG4 Overview

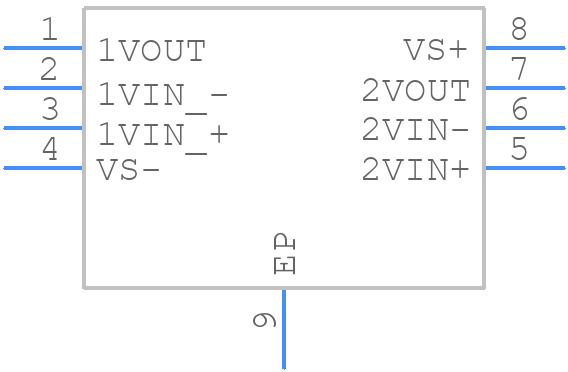

Use the download button to access the THS3062DGNG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS30,
or try a keyword search, such as Operational Amplifiers
