Texas Instruments provides a recommended PCB layout in the THS3091DDAG3 evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The selection of input and output termination resistors depends on the specific application and signal requirements. Texas Instruments provides guidelines for selecting termination resistors in the THS3091DDAG3 datasheet and application notes, including considerations for signal amplitude, frequency, and impedance matching.
The THS3091DDAG3 is specified to operate over a temperature range of -40°C to 125°C, but it's essential to consider the device's thermal characteristics, such as junction temperature and thermal resistance, to ensure reliable operation in your specific application.
To ensure EMC and EMI compliance, follow proper PCB design and layout practices, such as using shielding, grounding, and filtering, and consider the device's electromagnetic susceptibility and emissions characteristics, as outlined in the THS3091DDAG3 datasheet and application notes.
Texas Instruments recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling, along with proper PCB layout and routing, to minimize noise and ensure stable operation. Additional filtering techniques, such as ferrite beads or LC filters, may be necessary depending on the specific application and noise environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS3091DDAG3 Overview

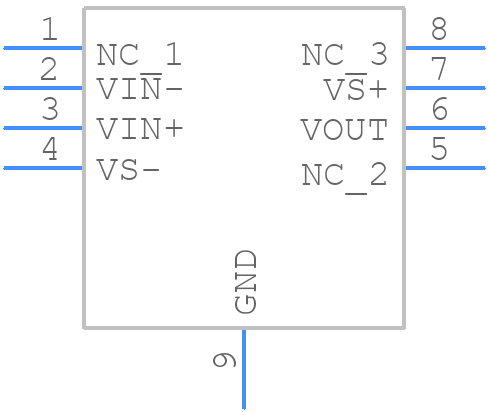

Use the download button to access the THS3091DDAG3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS30,
or try a keyword search, such as Operational Amplifiers
