SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Slew Rate-Nom:
1550 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
13 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
110000
Wideband:
YES
Width:
4.4 mm
THS3115CPWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS3115CPWP evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The choice of input and output termination resistors depends on the specific application and signal requirements. TI provides guidelines for selecting termination resistors in the THS3115CPWP datasheet and application notes, including considerations for impedance matching, signal integrity, and power consumption.
The THS3115CPWP is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and reliability at extreme temperatures. Consult the datasheet and TI's reliability documentation for more information.
TI provides guidelines for EMC and EMI compliance in the THS3115CPWP datasheet and application notes, including recommendations for PCB layout, shielding, and filtering. Additionally, consult relevant industry standards and regulations, such as CISPR and FCC, for specific requirements.
The THS3115CPWP is a high-speed amplifier with a bandwidth of 1.5 GHz, but its frequency response may be limited by the specific application, PCB layout, and component selection. Consult the datasheet and TI's application notes for more information on signal bandwidth and frequency response limitations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS3115CPWP Overview

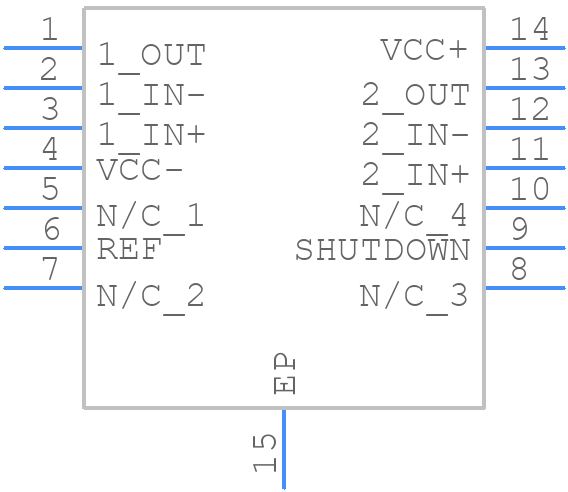

Use the download button to access the THS3115CPWP schematic symbol, PCB footprint, and 3D model.
