SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Slew Rate-Nom:
1550 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
13 mA
Supply Voltage Limit-Max:
16.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
110000
Wideband:
YES
Width:
4.4 mm
THS3115IPWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS3115IPWP evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The choice of input and output termination resistors depends on the specific application and signal requirements. TI provides guidelines for selecting termination resistors in the THS3115IPWP datasheet and application notes, including considerations for impedance matching, signal integrity, and power consumption.
The THS3115IPWP is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and reliability at extreme temperatures. Consult the datasheet and TI's reliability documentation for more information.
To ensure EMC, follow proper PCB design and layout practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as needed. TI also provides EMC guidelines and application notes for the THS3115IPWP.
While the THS3115IPWP has a high CMRR, it's not infinite. The CMRR can be affected by factors such as input impedance mismatch, noise, and temperature. Consult the datasheet and application notes for more information on CMRR limitations and how to optimize it for your application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS3115IPWP Overview

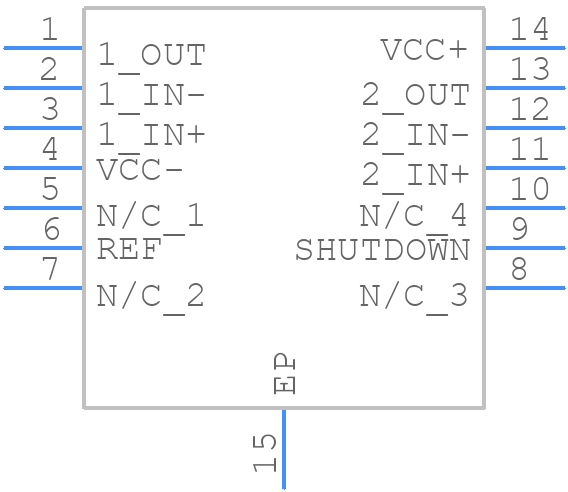

Use the download button to access the THS3115IPWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS31,
or try a keyword search, such as Operational Amplifiers
