Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces. Additionally, it's recommended to place the device close to the signal source and use a common-mode choke to filter out noise.
The THS3215IRGVR requires a dual supply voltage (VCC and VEE) and a bias voltage (VBIAS) to operate. Ensure that the bias voltage is set to the recommended value (typically 1.2V to 1.5V) and that the supply voltages are within the recommended range (VCC = 3.3V to 5V, VEE = -3.3V to -5V). Also, make sure to decouple the power supplies with capacitors to reduce noise and ripple.
The THS3215IRGVR can handle input signal amplitudes up to 2Vpp (peak-to-peak) differential, but it's recommended to limit the input amplitude to 1.5Vpp to ensure optimal performance and prevent distortion. Exceeding the maximum input amplitude can result in reduced gain, increased distortion, and potentially damage the device.
The THS3215IRGVR has a high gain-bandwidth product, which makes it susceptible to noise and interference. To filter out noise, use a low-pass filter (LPF) or a band-pass filter (BPF) at the output stage. The filter design should be based on the specific application requirements, but a general rule of thumb is to use a filter with a cutoff frequency at least 10 times lower than the signal frequency of interest.
The THS3215IRGVR output should be terminated with a 50Ω load to ensure maximum power transfer and minimize reflections. A 50Ω resistor in series with a capacitor (e.g., 50Ω + 10nF) can be used to provide a broadband match. Alternatively, a 50Ω resistor in parallel with a capacitor (e.g., 50Ω || 10nF) can be used to provide a narrowband match.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS3215IRGVR Overview

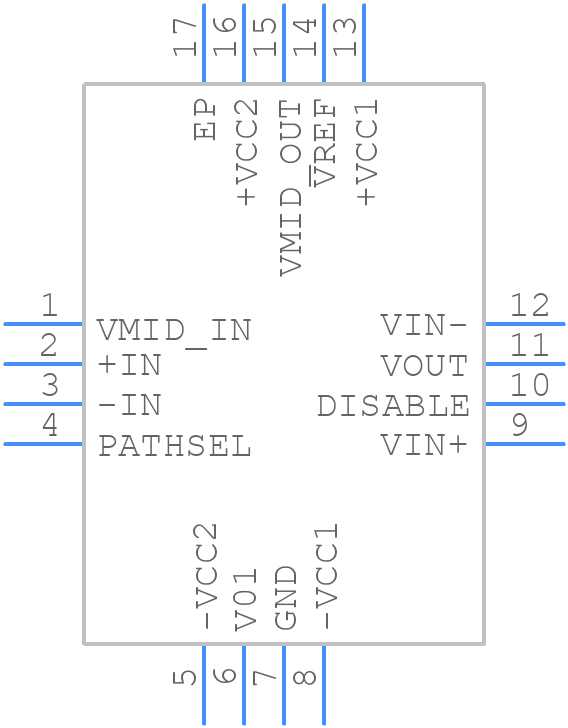

Use the download button to access the THS3215IRGVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS32,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
