THS3215IRGVT - Texas Instruments

Description: DC to 650-MHz, Differential-to-Single-Ended, DAC Output Amplifier

Download THS3215IRGVT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

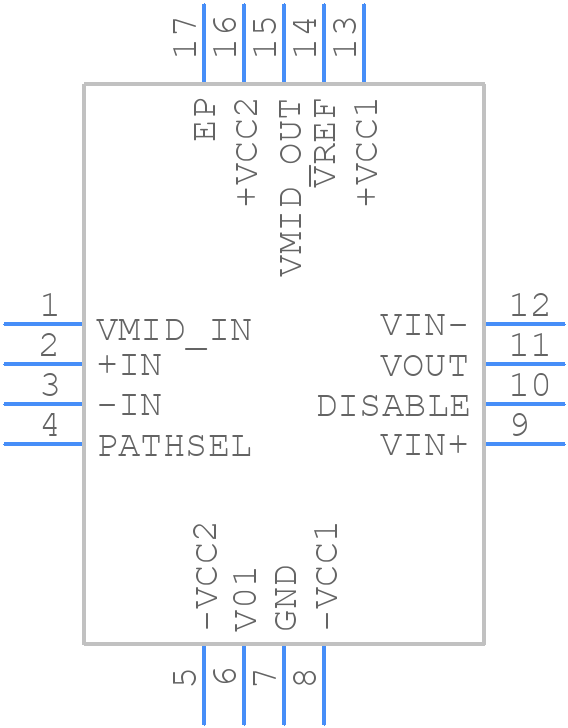

THS3215IRGVT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS3215IRGVT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGV (S-PVQFN-N16)_1
click to zoom
3D Models
THS3215IRGVT - Texas Instruments - 3D model - Quad Flat No-Lead - RGV (S-PVQFN-N16)_1
click to zoom

THS3215IRGVT Details

  • Manufacturer Part Number:

    THS3215IRGVT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2016-04-07

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    15.8 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

THS3215IRGVT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the THS3215 evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The selection of input and output termination resistors depends on the specific application and signal requirements. Texas Instruments provides guidelines and calculators in the THS3215 datasheet and application notes to help engineers select the correct termination resistors for their design.
  • The THS3215IRGVT is rated for operation from -40°C to 125°C, but the device's performance and reliability may degrade at extreme temperatures. Engineers should consult the datasheet and application notes for guidance on operating temperature ranges and thermal management.
  • Texas Instruments provides guidelines and recommendations for EMC and EMI compliance in the THS3215 datasheet and application notes, including advice on PCB layout, shielding, and filtering to minimize electromagnetic emissions and susceptibility.
  • Texas Instruments recommends using a combination of decoupling capacitors and filters to ensure a clean and stable power supply to the THS3215IRGVT. The datasheet and application notes provide guidance on the selection and placement of decoupling capacitors and filters to minimize power supply noise and ripple.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

THS3215IRGVT Overview

Use the download button to access the THS3215IRGVT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS32, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
