Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces. Additionally, it's recommended to place the device close to the signal source and use a common-mode choke to filter out noise.
The THS3217IRGVR has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. It's recommended to use a thermal interface material (TIM) between the device and the thermal plane, and to design the thermal plane to have a low thermal resistance. Additionally, it's important to ensure good airflow around the device to prevent overheating.
The recommended input termination for the THS3217IRGVR is a 50Ω resistor to ground, and the recommended output termination is a 50Ω resistor to the load. However, the optimal termination may vary depending on the specific application and signal frequencies involved. It's recommended to consult the datasheet and application notes for more information.
The THS3217IRGVR requires a single 5V power supply, and it's recommended to use a low-noise, low-dropout regulator (LDO) to power the device. The device also requires a bias voltage (VBIAS) that must be set to 2.5V ± 0.1V. It's recommended to use a voltage divider or a dedicated bias voltage generator to set the VBIAS voltage.
The THS3217IRGVR is specified to operate up to 1.7 GHz, but the actual operating frequency may be limited by the specific application and signal conditions. It's recommended to consult the datasheet and application notes for more information on the device's frequency response and limitations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS3217IRGVR Overview

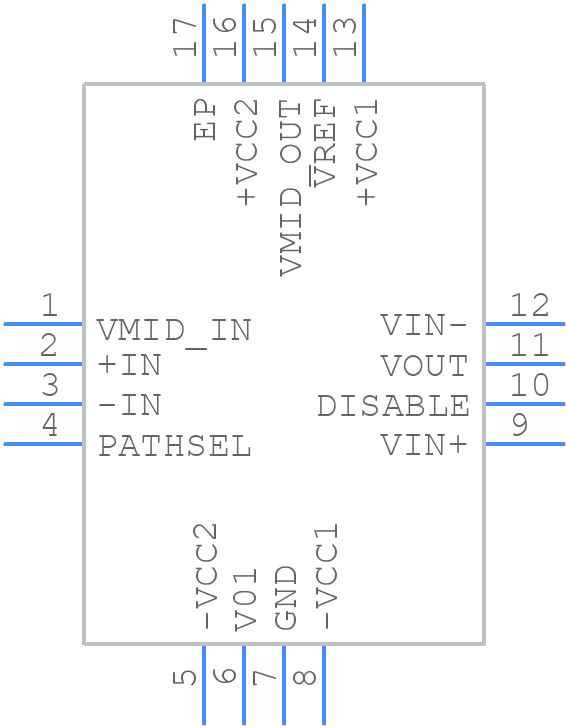

Use the download button to access the THS3217IRGVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS32,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
