SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Supply Current-Max:
10 mA
Supply Voltage-Max (Vsup):
15 V
Supply Voltage-Min (Vsup):
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
THS4082IDGN Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS4082IDGN evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The input termination depends on the specific application and signal source. For example, a 50Ω termination is suitable for most RF and microwave applications, while a 1kΩ termination may be used for audio or low-frequency applications. Consult the datasheet and application notes for guidance on selecting the right termination.
The THS4082IDGN is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and reliability at extreme temperatures. Consult the datasheet and reliability reports for more information.
Proper biasing is critical for the THS4082IDGN. Ensure that the supply voltage (VCC) is within the recommended range (2.7V to 5.5V), and that the input common-mode voltage is within the specified range (VCC/2 ± 1.4V). Additionally, ensure that the output is properly terminated and that the device is not subjected to excessive input voltage or current.
The THS4082IDGN has built-in ESD protection, but it's still essential to follow proper ESD handling and storage procedures to prevent damage. Use ESD-safe materials, handle the device by the body or pins, and store it in a static-shielding bag or container.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4082IDGN Overview

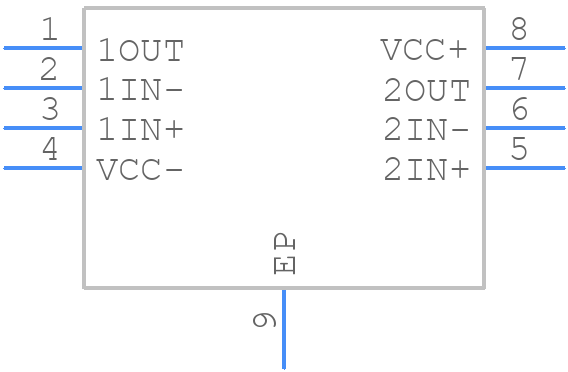

Use the download button to access the THS4082IDGN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS40,
or try a keyword search, such as Audio/Video Amplifiers
