SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Slew Rate-Nom:
55 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
13.5 mA
Supply Voltage Limit-Max:
3.6 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
100000
Voltage Gain-Min:
1000
Wideband:
YES
Width:
3 mm
THS4120IDGN Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS4120IDGN evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The input termination depends on the specific application and signal source. For example, a 50Ω termination is suitable for most RF and high-speed digital applications, while a 1kΩ termination may be used for low-frequency or audio applications. Consult the datasheet and application notes for more information.
The THS4120IDGN is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and reliability at extreme temperatures. Consult the datasheet and reliability reports for more information.
Yes, the THS4120IDGN can be used in a non-inverting configuration by swapping the inputs and adjusting the feedback network accordingly. However, this may affect the device's performance and stability, so it's essential to consult the datasheet and application notes for guidance.
The THS4120IDGN has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent damage. Use ESD-safe materials, handle the device by the body or pins, and avoid touching the pins or internal circuitry.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4120IDGN Overview

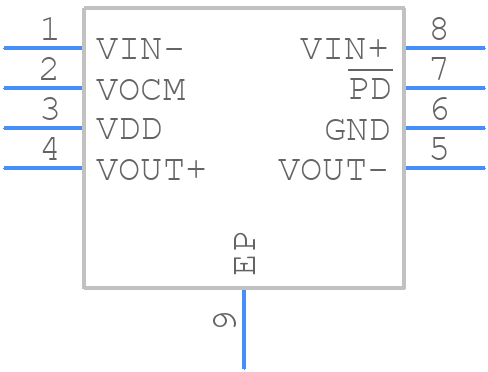

Use the download button to access the THS4120IDGN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS41,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
