SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Slew Rate-Nom:
2800 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
28 mA
Supply Voltage Limit-Max:
8.25 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
300000
Voltage Gain-Min:
355
Wideband:
YES
Width:
3 mm
THS4503IDGN Frequently Asked Questions (FAQs)
A good PCB layout for the THS4503IDGN involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability, it's essential to follow the recommended PCB layout, use a low-ESR output capacitor, and add a series resistor (Rs) in the feedback path. Additionally, the gain and phase margins should be checked to ensure they meet the stability criteria.
The maximum power dissipation of the THS4503IDGN is dependent on the ambient temperature and the thermal resistance of the package. The power dissipation can be calculated using the formula: Pd = (Vcc x Icc) + (Vout x Iout). The maximum power dissipation can be found in the datasheet.
Yes, the THS4503IDGN can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is matched to the source impedance, and the output impedance is matched to the load impedance. Additionally, the gain bandwidth product should be considered to ensure stability.
To filter out high-frequency noise and EMI, it's recommended to use a low-pass filter at the input, such as an RC filter or a ferrite bead. Additionally, a shielded enclosure and a ground plane can help reduce EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4503IDGN Overview

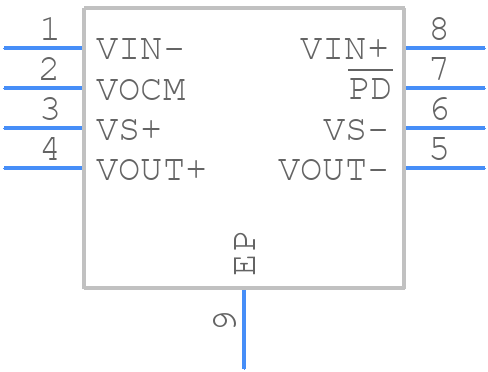

Use the download button to access the THS4503IDGN schematic symbol, PCB footprint, and 3D model.
