SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Slew Rate-Nom:
2800 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
28 mA
Supply Voltage Limit-Max:
8.25 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
300000
Voltage Gain-Min:
355
Wideband:
YES
Width:
3 mm
THS4503IDGNR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS4503IDGNR evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The selection of input and output termination resistors depends on the specific application and signal requirements. Texas Instruments provides guidelines for selecting termination resistors in the THS4503IDGNR datasheet and application notes, including considerations for impedance matching, signal integrity, and power consumption.
The THS4503IDGNR is specified to operate over a temperature range of -40°C to 125°C, but it's recommended to derate the device's performance and power consumption at extreme temperatures. Consult the datasheet and application notes for more information on temperature-related considerations.
To ensure EMC and EMI compliance, follow proper PCB design and layout practices, use shielding and filtering techniques, and consider the device's radiated and conducted emissions. Texas Instruments provides guidelines and resources for EMC and EMI compliance in the THS4503IDGNR datasheet and application notes.
Texas Instruments recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling, along with proper PCB layout and routing techniques to minimize noise and ensure stable operation. Consult the THS4503IDGNR datasheet and application notes for more information on power supply decoupling and filtering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS4503IDGNR Overview

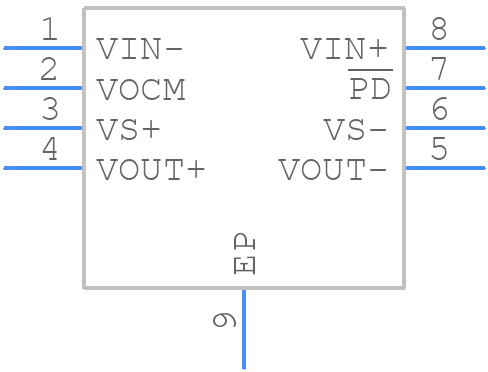

Use the download button to access the THS4503IDGNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS45,
or try a keyword search, such as Operational Amplifiers
