THS6212IRHFT - Texas Instruments

Description: High Speed, Differential Line Driver Amplifier

Download THS6212IRHFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

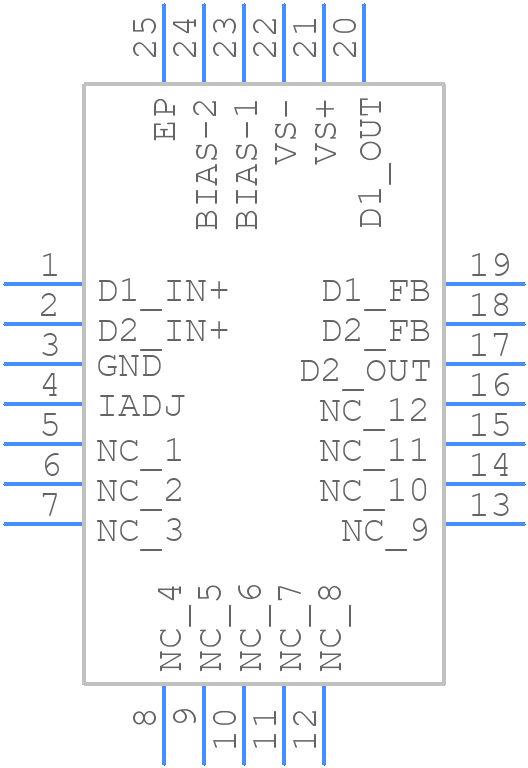

Symbol
THS6212IRHFT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS6212IRHFT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHF0024A
click to zoom
3D Models
THS6212IRHFT - Texas Instruments - 3D model - Quad Flat No-Lead - RHF0024A
click to zoom

THS6212IRHFT Details

  • Manufacturer Part Number:

    THS6212IRHFT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2016-05-18

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    0.665 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    14 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    6 V

  • Supply Voltage1-Max:

    14 V

  • Supply Voltage1-Min:

    5 V

  • Supply Voltage1-Nom:

    6 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

THS6212IRHFT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the THS6212IRHFT evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The input termination resistors (RIN) should be chosen based on the source impedance of the signal and the desired input impedance of the amplifier. A general guideline is to choose RIN = 2 * ZS, where ZS is the source impedance. However, the optimal value may vary depending on the specific application and signal characteristics.
  • The maximum power dissipation of the THS6212IRHFT is 1.4W. To ensure it does not overheat, the device should be mounted on a PCB with a sufficient thermal pad and heat sink, and the ambient temperature should be kept below 85°C. Additionally, the device's power consumption should be monitored and kept within the recommended limits.
  • The THS6212IRHFT has a built-in anti-aliasing filter, but additional filtering may be necessary depending on the specific application. A low-pass filter can be added at the input or output of the amplifier to filter out high-frequency noise and aliasing. The filter design should be based on the specific signal characteristics and requirements.
  • Texas Instruments recommends using a 10uF ceramic capacitor in parallel with a 1uF ceramic capacitor as close to the supply pins as possible to bypass and decouple the power supply. Additional decoupling capacitors may be necessary depending on the specific application and PCB layout.
