SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max:
14 V
Supply Voltage-Min:
5 V
Supply Voltage-Nom:
6 V
Supply Voltage1-Max:
28 V
Supply Voltage1-Min:
10 V
Supply Voltage1-Nom:
12 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transmit Delay-Max:
1 ns
Width:
4.4 mm
THS6214IPWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS6214IPWP evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The input termination resistors depend on the specific application and signal source. TI provides a termination resistor calculator tool to help select the correct values based on the signal frequency, amplitude, and source impedance.
The THS6214IPWP is rated for operation from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
Yes, the THS6214IPWP can be used in a non-inverting amplifier configuration. However, the input common-mode voltage range and output voltage swing should be considered to ensure the amplifier operates within its specifications.
To minimize EMI, use proper PCB layout techniques, such as separating analog and digital signals, using ground planes, and adding shielding if necessary. Additionally, ensure that the power supply is well-regulated and decoupled to reduce noise.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
THS6214IPWP Overview

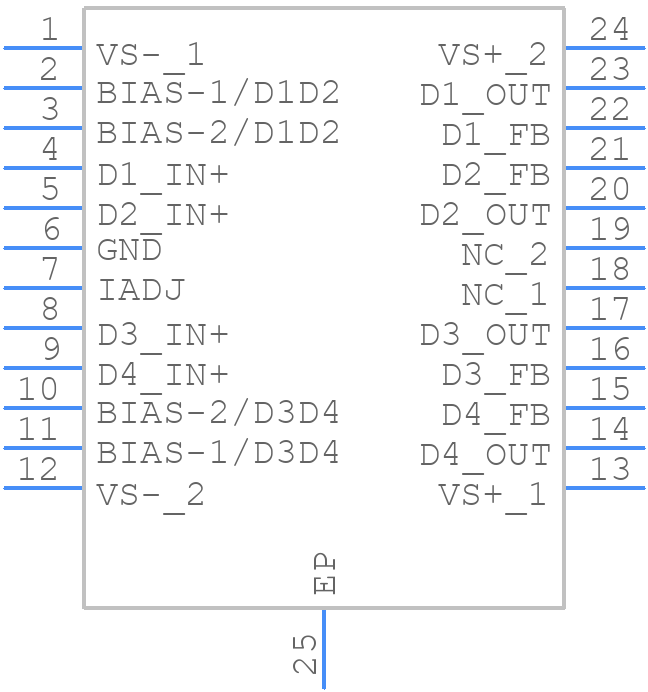

Use the download button to access the THS6214IPWP schematic symbol, PCB footprint, and 3D model.
