Texas Instruments provides a recommended PCB layout in the THS6301IRSAR evaluation module (EVM) documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of input and output capacitors depends on the specific application requirements, such as frequency range, impedance, and ripple current. TI recommends using X7R or X5R ceramic capacitors with a voltage rating of at least 2x the maximum input voltage, and a capacitance value between 1uF to 10uF for input capacitors, and 10uF to 22uF for output capacitors.
The THS6301IRSAR is rated for operation from -40°C to 125°C, but the maximum operating temperature range may vary depending on the specific application and thermal management. It's recommended to consult the datasheet and thermal management guidelines for specific temperature range limitations.
To ensure EMC, follow proper PCB layout and design guidelines, use shielding and filtering components, and implement proper grounding and decoupling techniques. Additionally, TI recommends following the IEC 61000-4-2 standard for electromagnetic immunity testing.
The recommended power-up sequence for THS6301IRSAR is to apply the input voltage (VIN) first, followed by the enable pin (EN) going high. This ensures proper startup and minimizes the risk of latch-up or damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS6301IRSAR Overview

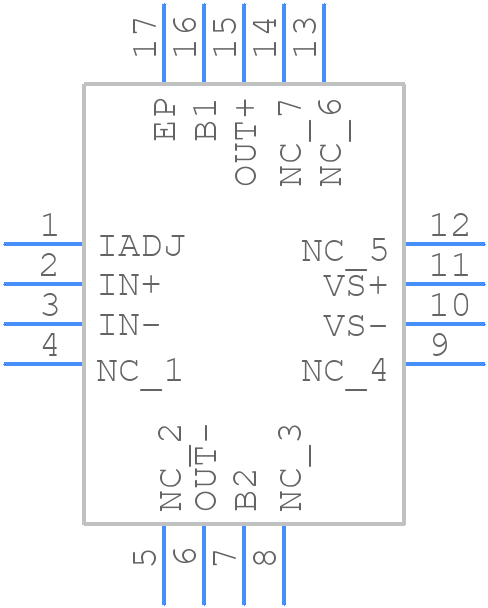

Use the download button to access the THS6301IRSAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS63,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
