Texas Instruments provides a recommended PCB layout in the THS6301IRSAT evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The selection of input and output capacitors depends on the specific application requirements, such as input voltage, output current, and ripple rejection. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for input and output filtering, and provides guidance on capacitor selection in the datasheet and application notes.
The THS6301IRSAT is rated for operation from -40°C to 125°C, but the maximum operating temperature range may be limited by the specific application and PCB design. Engineers should ensure that the device is operated within the recommended temperature range to ensure reliability and performance.
TI provides troubleshooting guides and application notes that cover common issues and their solutions, including oscillation and instability. Engineers can also use simulation tools and Spice models to analyze and debug their designs.
The THS6301IRSAT has a high power density, and thermal management is critical to ensure reliability and performance. Engineers should consider thermal design factors such as heat sinking, thermal vias, and airflow to keep the device within the recommended operating temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS6301IRSAT Overview

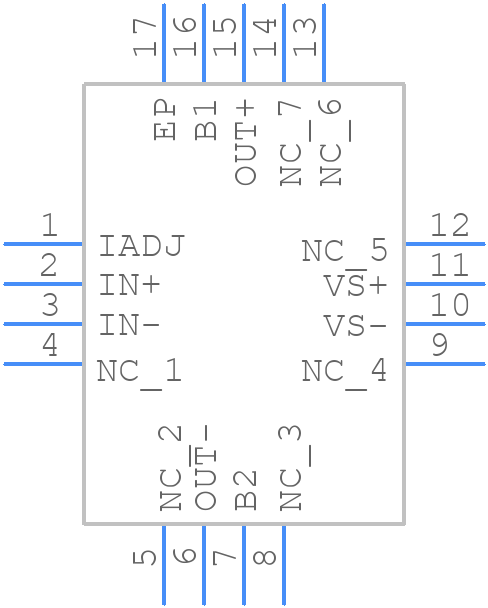

Use the download button to access the THS6301IRSAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS63,
or try a keyword search, such as Line Driver or Receivers
