SHUTDOWN CONTROL, DIGITALLY PROGRAMMABLE GAIN, -22 DB TO 20 DB GAIN/ATTENUATION RANGE
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e4
Length:
6.5 mm
Moisture Sensitivity Level:
2
Neg Supply Voltage-Max (Vsup):
-16.5 V
Neg Supply Voltage-Min (Vsup):
-4.5 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Equivalence Code:
TSSOP20,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
9 mA
Supply Voltage-Max (Vsup):
32 V
Supply Voltage-Min (Vsup):
9 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
THS7001CPWPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the THS7001 evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The selection of input and output termination resistors depends on the specific application and signal requirements. TI provides guidelines for selecting termination resistors in the THS7001 datasheet and application notes, including considerations for impedance matching, signal integrity, and power consumption.
The THS7001CPWPR is rated for operation from -40°C to 125°C, but the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the operating temperature range and potential thermal management requirements for your specific application.
To ensure EMC and EMI compliance, follow proper PCB design and layout practices, use shielding and filtering components as needed, and consider the device's radiated and conducted emissions. TI provides guidance on EMC and EMI considerations in the THS7001 datasheet and application notes.
The THS7001CPWPR requires a specific power sequencing to ensure proper operation and prevent damage. The recommended power sequencing is to apply the analog supply voltage (VCC) before the digital supply voltage (VDD), and to ensure that the analog supply voltage is stable before applying the digital supply voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS7001CPWPR Overview

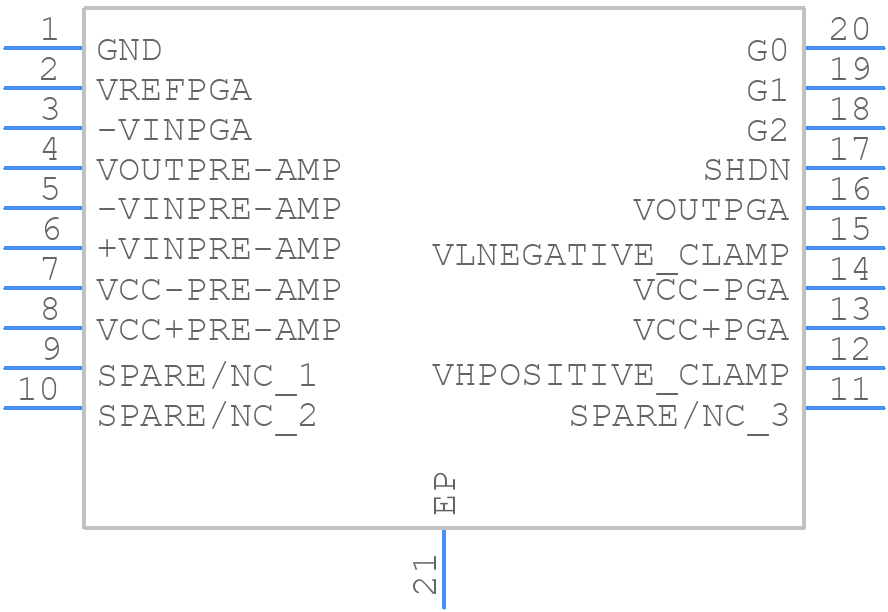

Use the download button to access the THS7001CPWPR schematic symbol, PCB footprint, and 3D model.
