SHUTDOWN CONTROL, DIGITALLY PROGRAMMABLE GAIN, -22 DB TO 20 DB GAIN/ATTENUATION RANGE
Analog IC - Other Type:
ANALOG CIRCUIT
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e4
Length:
6.5 mm
Moisture Sensitivity Level:
2
Neg Supply Voltage-Max (Vsup):
-16.5 V
Neg Supply Voltage-Min (Vsup):
-4.5 V
Neg Supply Voltage-Nom (Vsup):
-5 V
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Equivalence Code:
TSSOP20,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
9 mA
Supply Voltage-Max (Vsup):
32 V
Supply Voltage-Min (Vsup):
9 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
THS7001IPWP Frequently Asked Questions (FAQs)
A good PCB layout for the THS7001IPWP involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, make sure to follow the recommended compensation network values and component placement guidelines provided in the datasheet. Additionally, ensure that the input and output impedance matching is correct, and the device is operated within the recommended operating conditions.
The maximum power dissipation of the THS7001IPWP is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the actual operating conditions.
The THS7001IPWP is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and consider using thermal management techniques to ensure reliable operation.
To troubleshoot issues with the THS7001IPWP, start by verifying the power supply voltage, input and output signals, and the PCB layout. Use an oscilloscope to check for oscillations, noise, or distortion. Check the device's operating conditions, such as temperature and power dissipation, and ensure that the device is operated within the recommended specifications.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS7001IPWP Overview

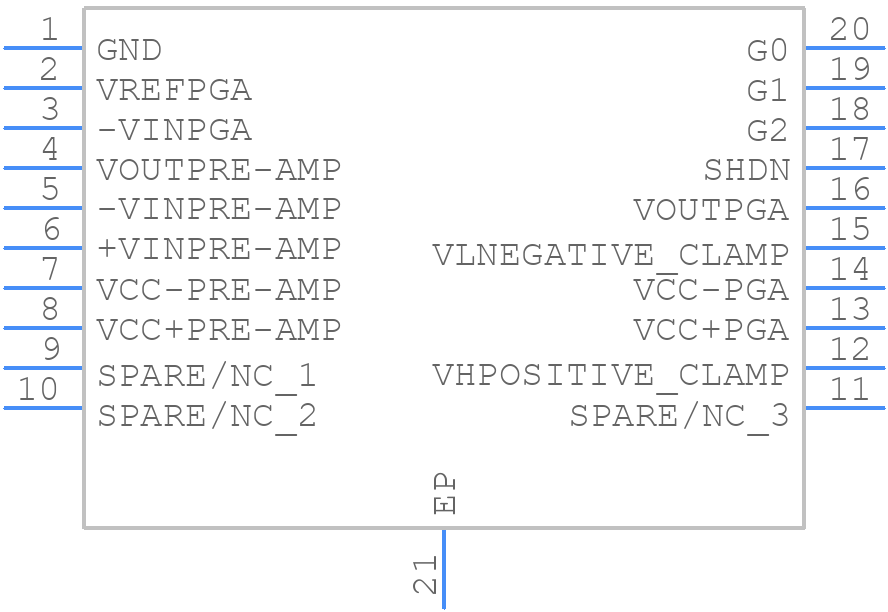

Use the download button to access the THS7001IPWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS70,
or try a keyword search, such as Other Signal Circuits
