THS7303PW - Texas Instruments

Description: 3-Ch Low Power Video Amp w/I2C Control, Select Filters +6db Gain 2:1 Input MUX

Download THS7303PW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

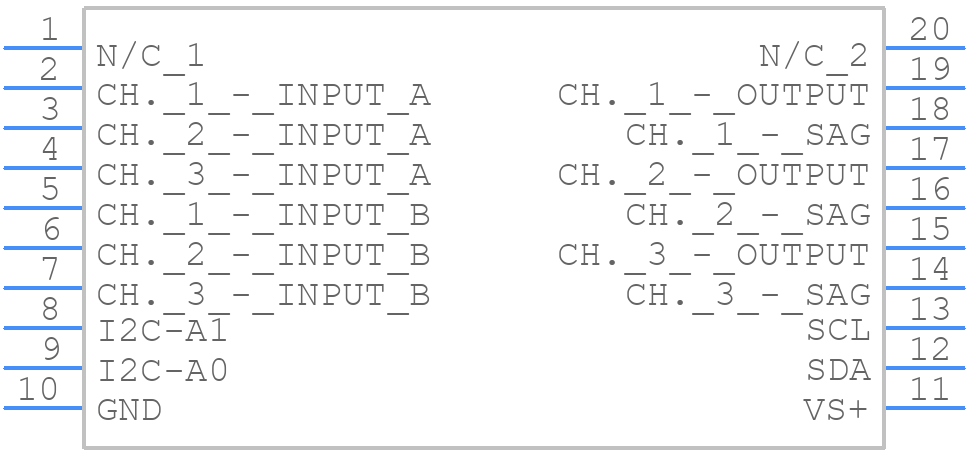

Symbol
THS7303PW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS7303PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G20)
click to zoom
3D Models
THS7303PW - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G20)
click to zoom

THS7303PW Details

  • Manufacturer Part Number:

    THS7303PW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    41000 kHz

  • Consumer IC Type:

    VIDEO AMPLIFIER

  • Gain:

    6 dB

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    24.6 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

THS7303PW Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the THS7303PW evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The selection of input and output termination resistors depends on the specific application and signal requirements. TI provides a termination resistor calculator tool to help designers select the correct values based on their specific use case.
  • The THS7303PW is specified to operate from -40°C to 125°C, but it's essential to consider the derating of the device's performance and power consumption at higher temperatures to ensure reliable operation.
  • Yes, the THS7303PW can be used in a non-inverting configuration by connecting the output to the inverting input and using an external feedback network. However, this configuration may require additional compensation and stability analysis.
  • To ensure stability, it's essential to follow the recommended layout and routing guidelines, use proper bypassing and decoupling, and analyze the loop gain and phase margin of the amplifier. TI provides a stability analysis tool to help designers evaluate and optimize their designs.
