THS7303PWG4 - Texas Instruments

Description: TEXAS INSTRUMENTS - THS7303PWG4 - Video Amplifier, 3 Amplifiers, 35 MHz, 320 V/µs, -40 °C, 85 °C, 70 mA

Download THS7303PWG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

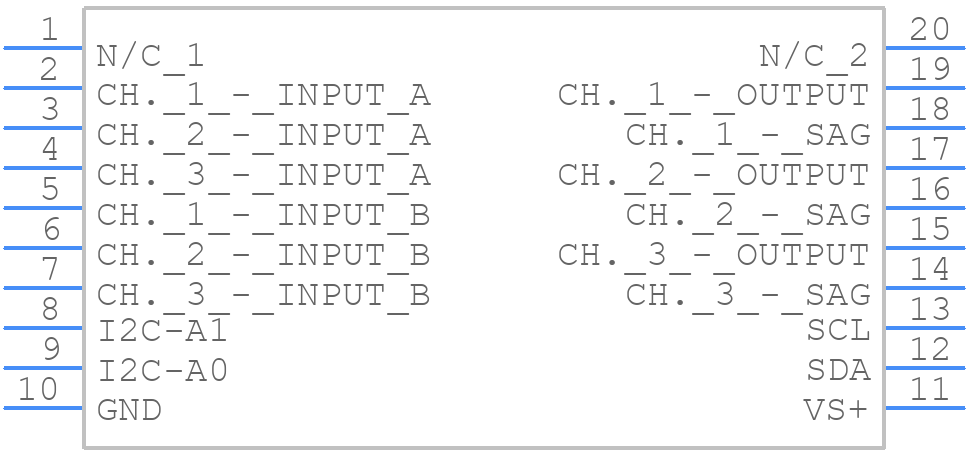

THS7303PWG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS7303PWG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0020A
click to zoom
3D Models
THS7303PWG4 - Texas Instruments - 3D model - Small Outline Packages - PW0020A
click to zoom

THS7303PWG4 Details

  • Manufacturer Part Number:

    THS7303PWG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    41000 kHz

  • Consumer IC Type:

    VIDEO AMPLIFIER

  • Gain:

    6 dB

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    24.6 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

THS7303PWG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
  • The THS7303PWG4 requires a specific bias voltage and current to operate optimally. Ensure that the VCC and VEE pins are properly biased to the recommended voltage levels, and that the input and output pins are properly terminated to prevent signal reflections.
  • The THS7303PWG4 has an operating temperature range of -40°C to 85°C. However, it's essential to ensure that the device is properly heat-sinked and that the junction temperature (TJ) does not exceed 150°C to prevent thermal shutdown.
  • The THS7303PWG4 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is properly grounded during handling.
  • The THS7303PWG4 requires proper input and output termination to prevent signal reflections and ensure optimal performance. Use a 50-ohm termination resistor at the input and output pins, and ensure that the transmission lines are properly impedance-matched.
