A good PCB layout for the THS7314DR involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The gain setting of the THS7314DR depends on the specific application requirements. A higher gain setting can provide better signal-to-noise ratio, but may also increase the risk of oscillation. A lower gain setting can provide better stability, but may also reduce the signal amplitude. It's recommended to consult the datasheet and application notes for guidance on choosing the optimal gain setting.
The maximum input signal amplitude that the THS7314DR can handle is dependent on the gain setting and the supply voltage. According to the datasheet, the maximum input signal amplitude is typically 2.5Vpp for a gain setting of 6dB and a supply voltage of 5V. However, it's recommended to consult the datasheet and application notes for specific guidance on input signal amplitude limits.
To ensure the THS7314DR is stable and doesn't oscillate, it's recommended to follow proper PCB layout guidelines, use a solid ground plane, and decouple the power supply with capacitors. Additionally, it's recommended to use a series resistor in the output stage to prevent oscillation. Consult the datasheet and application notes for specific guidance on stability and oscillation prevention.
The typical power consumption of the THS7314DR is dependent on the supply voltage and the gain setting. According to the datasheet, the typical power consumption is around 120mW for a supply voltage of 5V and a gain setting of 6dB. However, it's recommended to consult the datasheet and application notes for specific guidance on power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS7314DR Overview

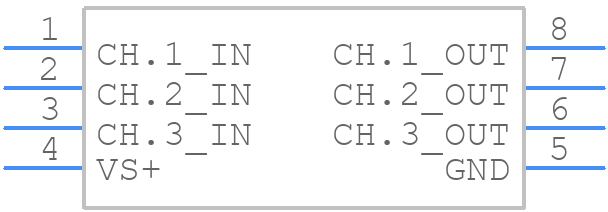

Use the download button to access the THS7314DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS73,
or try a keyword search, such as Buffer Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
