Texas Instruments provides a recommended PCB layout in the THS7316DG4 evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The choice of output filter components depends on the specific application requirements, such as bandwidth, attenuation, and impedance matching. Texas Instruments provides a filter design tool and application notes to help engineers select the optimal components for their design.
The maximum power dissipation of the THS7316DG4 is dependent on the operating conditions, such as supply voltage, output current, and ambient temperature. Engineers should ensure proper thermal design, including heat sinking and airflow, to keep the device within its recommended operating temperature range.
Yes, the THS7316DG4 can be used in a differential output configuration, but it requires additional external components and careful layout to maintain common-mode rejection and minimize noise. Texas Instruments provides application notes and design examples to help engineers implement differential output configurations.
Texas Instruments provides troubleshooting guides and application notes that cover common issues and their solutions, including oscillations, instability, and noise. Engineers can also consult the device's datasheet and errata for specific guidance on troubleshooting and debugging.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
THS7316DG4 Overview

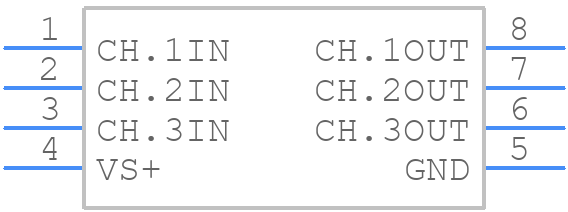

Use the download button to access the THS7316DG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS73,
or try a keyword search, such as Audio/Video Amplifiers
