THS7320IYHCR - Texas Instruments

Description: 3-Channel ED Filter Video Amplifier with 4V/V Gain

Download THS7320IYHCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

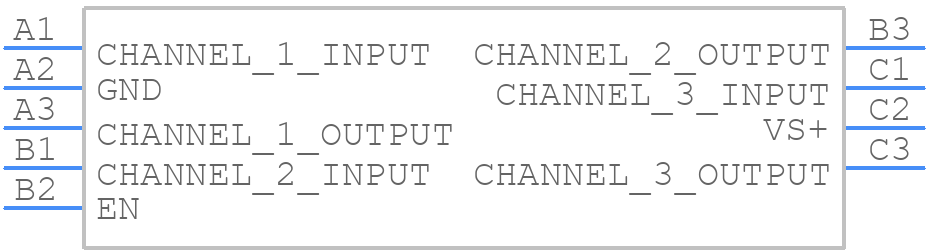

THS7320IYHCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
THS7320IYHCR - Texas Instruments PCB footprint - BGA - BGA - YHC(S-XBGA-N9)
click to zoom
3D Models
THS7320IYHCR - Texas Instruments - 3D model - BGA - YHC(S-XBGA-N9)
click to zoom

THS7320IYHCR Details

  • Manufacturer Part Number:

    THS7320IYHCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DSBGA-9

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    VIDEO AMPLIFIER

  • Gain:

    31.8 dB

  • JESD-30 Code:

    S-PBGA-B9

  • JESD-609 Code:

    e1

  • Length:

    1.04999999999999 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    3

  • Number of Functions:

    3

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA9,3X3,12

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.5 mm

  • Supply Current-Max:

    4.7 mA

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    2.6 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.3 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.04999999999999 mm

THS7320IYHCR Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the THS7320IYHCR. TI recommends a 4-layer PCB with a solid ground plane, and the use of vias to connect the top and bottom layers. Keep the input and output traces short and away from each other to minimize noise and coupling.
  • The gain setting depends on the input signal amplitude and the desired output signal level. TI provides a gain calculation formula in the datasheet. Consider the input signal's peak-to-peak amplitude, the desired output signal level, and the gain range of the THS7320IYHCR (20dB to 40dB) when selecting the gain setting.
  • The input impedance of the THS7320IYHCR is relatively high (around 1kΩ). This can affect the frequency response and signal attenuation. Ensure that the input signal source has a low output impedance to minimize signal loss and distortion.
  • The THS7320IYHCR has a built-in low-pass filter, but additional filtering may be necessary depending on the application. Consider using external filters, such as RC filters or active filters, to remove unwanted signals and noise. TI also provides filter design tools and resources to help with this task.
  • The maximum power dissipation of the THS7320IYHCR is around 1.4W. Ensure that the device is properly heat-sinked and that the PCB design allows for adequate heat dissipation to prevent overheating and damage.
