Texas Instruments provides a recommended PCB layout in the THS7360IPW evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To optimize the THS7360IPW for low power consumption, use the lowest possible supply voltage, disable unused channels, and adjust the output current limit to the minimum required value. Additionally, consider using the device's power-down mode when not in use.
The THS7360IPW can drive capacitive loads up to 100 nF, but it's recommended to limit the load capacitance to 10 nF or less to ensure stability and optimal performance.
To troubleshoot oscillations or instability issues, check the PCB layout for noise coupling, ensure proper decoupling and bypassing, and verify that the output is properly terminated. Also, check the input signal quality and ensure that the device is operated within its recommended operating conditions.
The THS7360IPW is specified to operate up to 125°C, but its performance and reliability may degrade at high temperatures. Ensure that the device is properly heatsinked and that the maximum junction temperature is not exceeded.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
THS7360IPW Overview

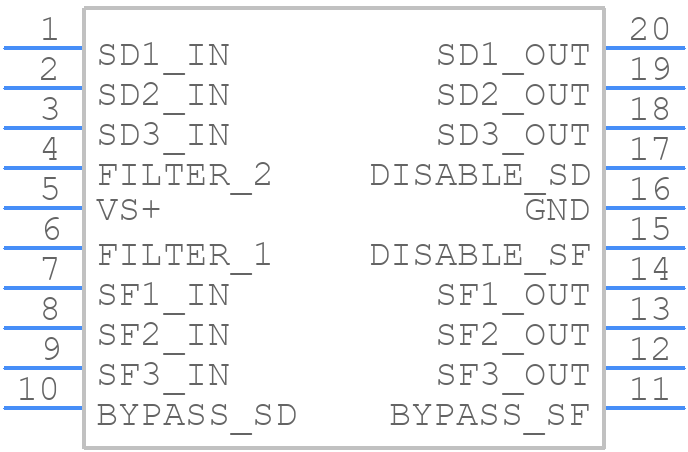

Use the download button to access the THS7360IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS73,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
