A good PCB layout for the THS7360IPWR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To optimize the THS7360IPWR for low power consumption, use the lowest possible supply voltage, disable the internal voltage regulator, and use the power-down mode when not in use. Additionally, consider using a lower clock frequency and optimizing the analog circuitry to reduce power consumption.
The THS7360IPWR has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, use a thermal pad, and ensure good airflow around the device. Additionally, consider using a thermal interface material to improve heat transfer.
Common issues with the THS7360IPWR include oscillations, noise, and distortion. To troubleshoot these issues, check the PCB layout, ensure proper power supply decoupling, and verify that the input signals are within the recommended range. Additionally, use an oscilloscope to visualize the signals and identify any anomalies.
To minimize EMI and RFI with the THS7360IPWR, use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke to filter the power supply. Additionally, consider using a ferrite bead to filter the analog signals and reduce radiation.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
THS7360IPWR Overview

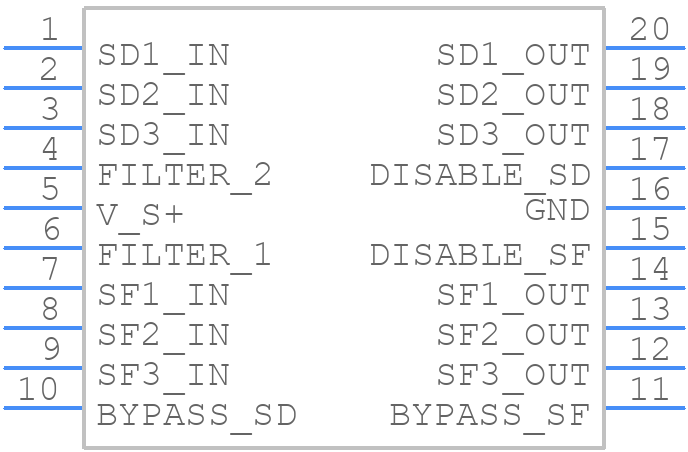

Use the download button to access the THS7360IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like THS73,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
